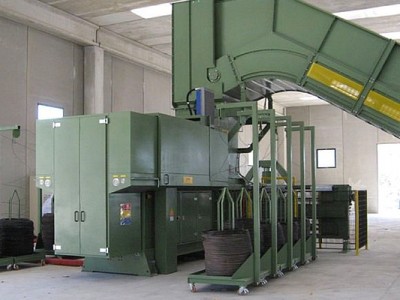

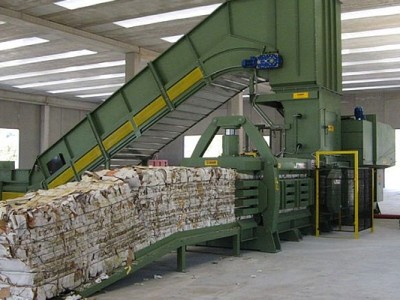

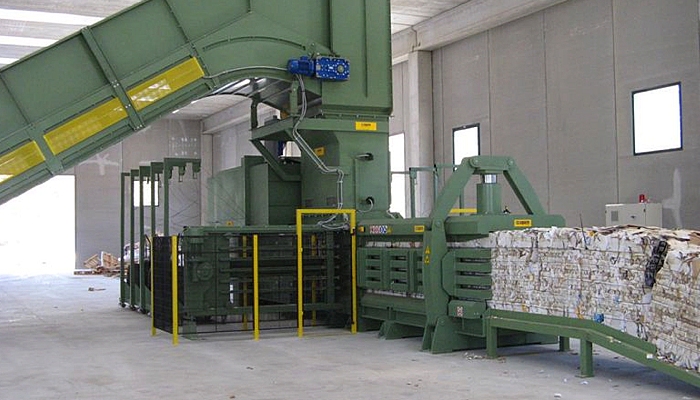

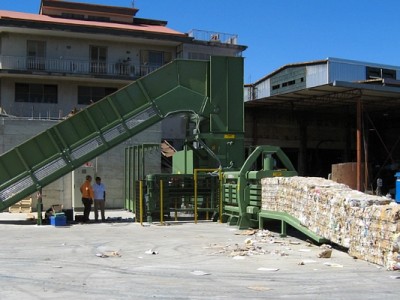

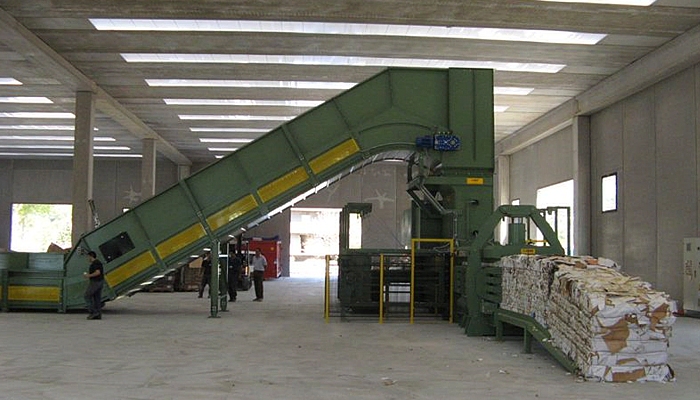

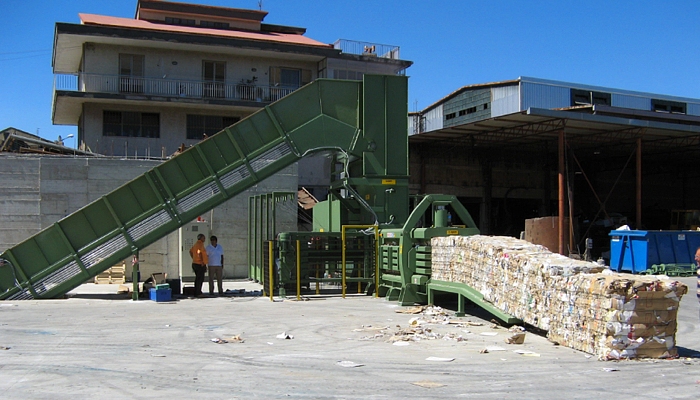

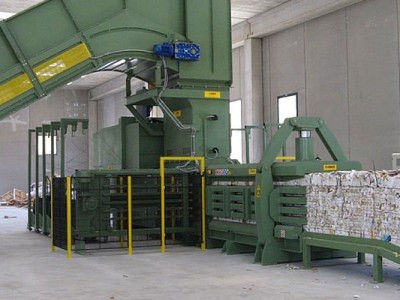

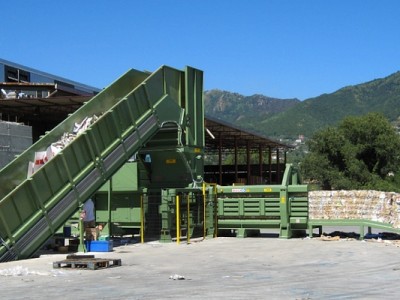

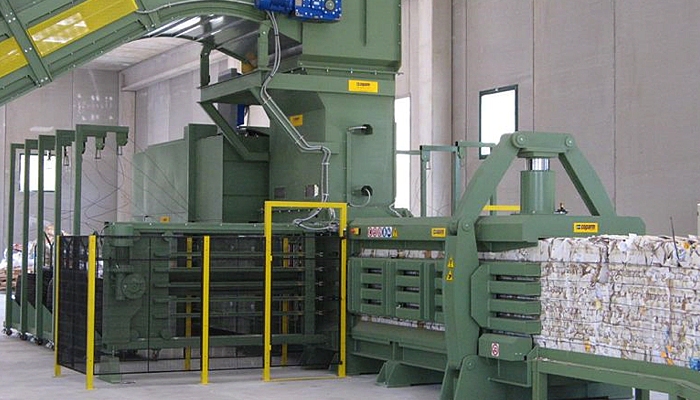

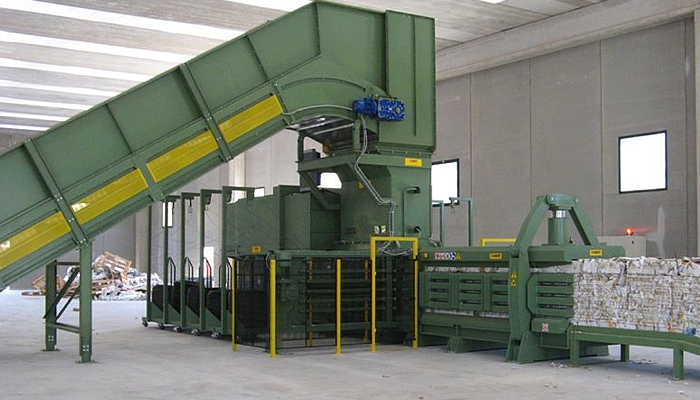

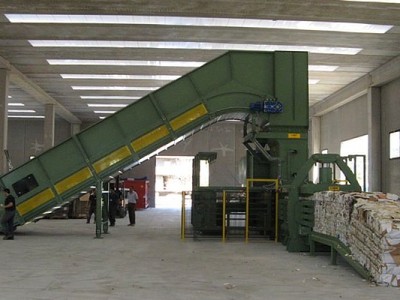

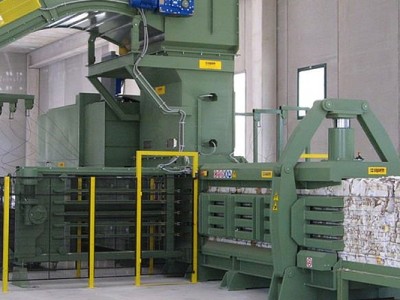

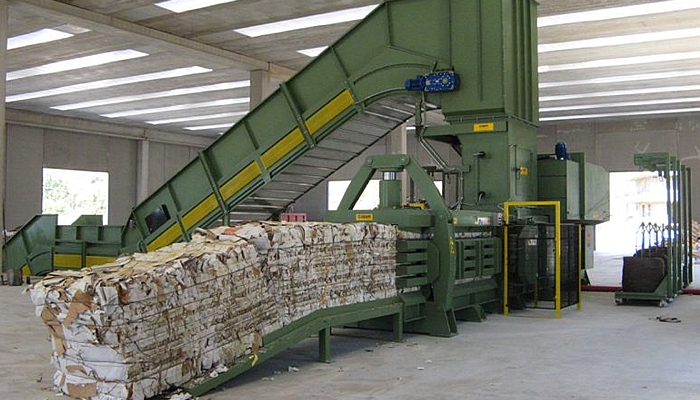

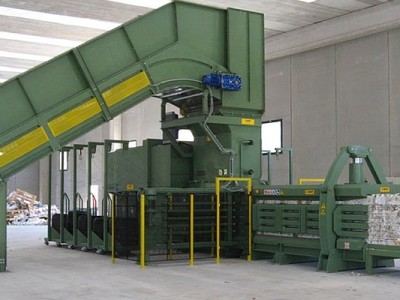

The model is suitable for large recovery and processing centers secondary raw materials. Reliable and robust guarantees high performance and efficiency in production. It ‘a press size highly suitable to bale large amounts of paper, cardboard, plastic and similar Waste.
Maximum length: 11.420 mm
Overall width: 5.600 mm
Maximum height: 6.440 mm
Bale size: 1.100 x 1.100 mm x Var.
Hopper size: 1.000 x 1.800 mm x Var.
Production: 30 – 35 ton/h
Production volume: 680 mc/h
Power: 150 Hp – 2×55 Kw
Thrust: 170 ton
Cylinder dimensions: A = 260 mm S = 180 mm C = 2.700 mm
Cycles: N° 5 / min
Specific pressure: 14,5 Kg/cmq

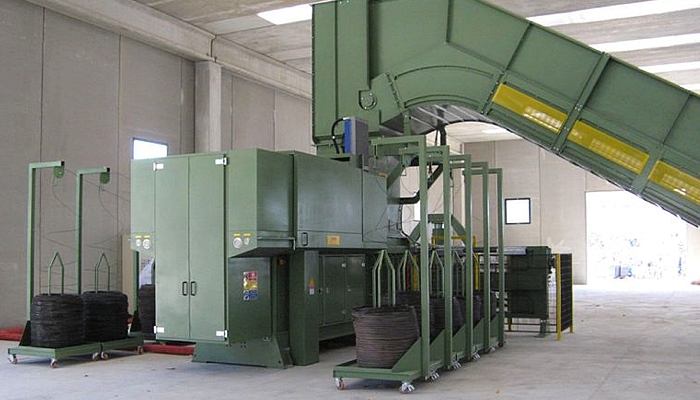

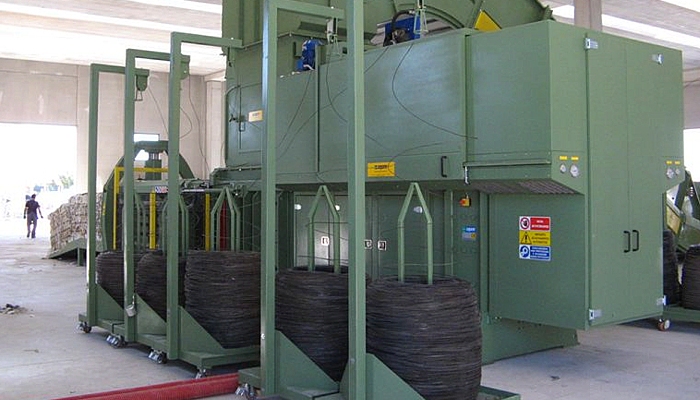

Binding: N° 5 horizontal wires

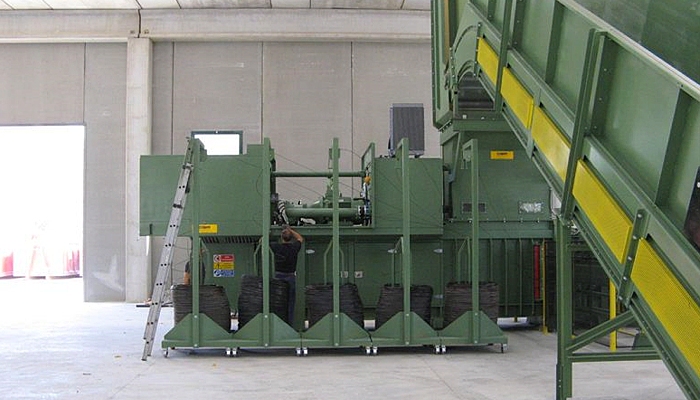

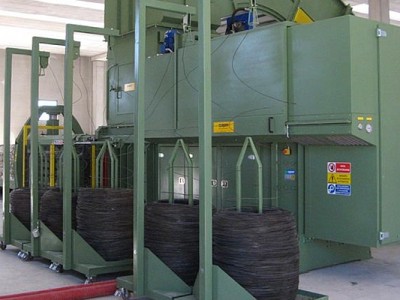

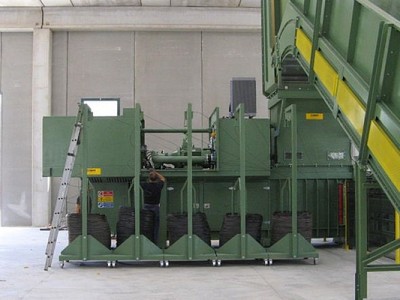

Fastening wire : Iron wire and / or plastic wire
machine weight: 35.000 kg
Specific Binding system for waste
Reinforced trolley for Waste
Wirbulator in the hopper for newspapers and magazines
Color other than the standard (RAL 6011)
Soundproofing system
Diagnostic press supervisor
Installation of dust extraction hopper
System for the automatic weighing of the bale
Binding with plastic wire
