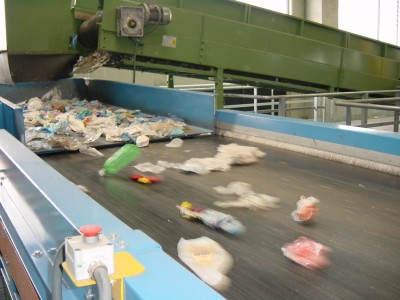

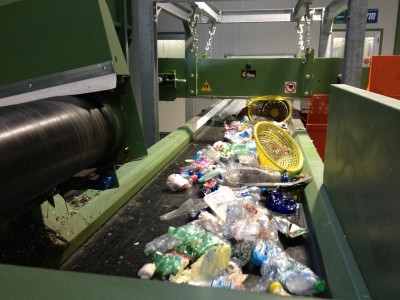

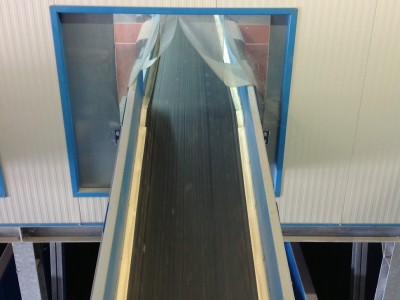

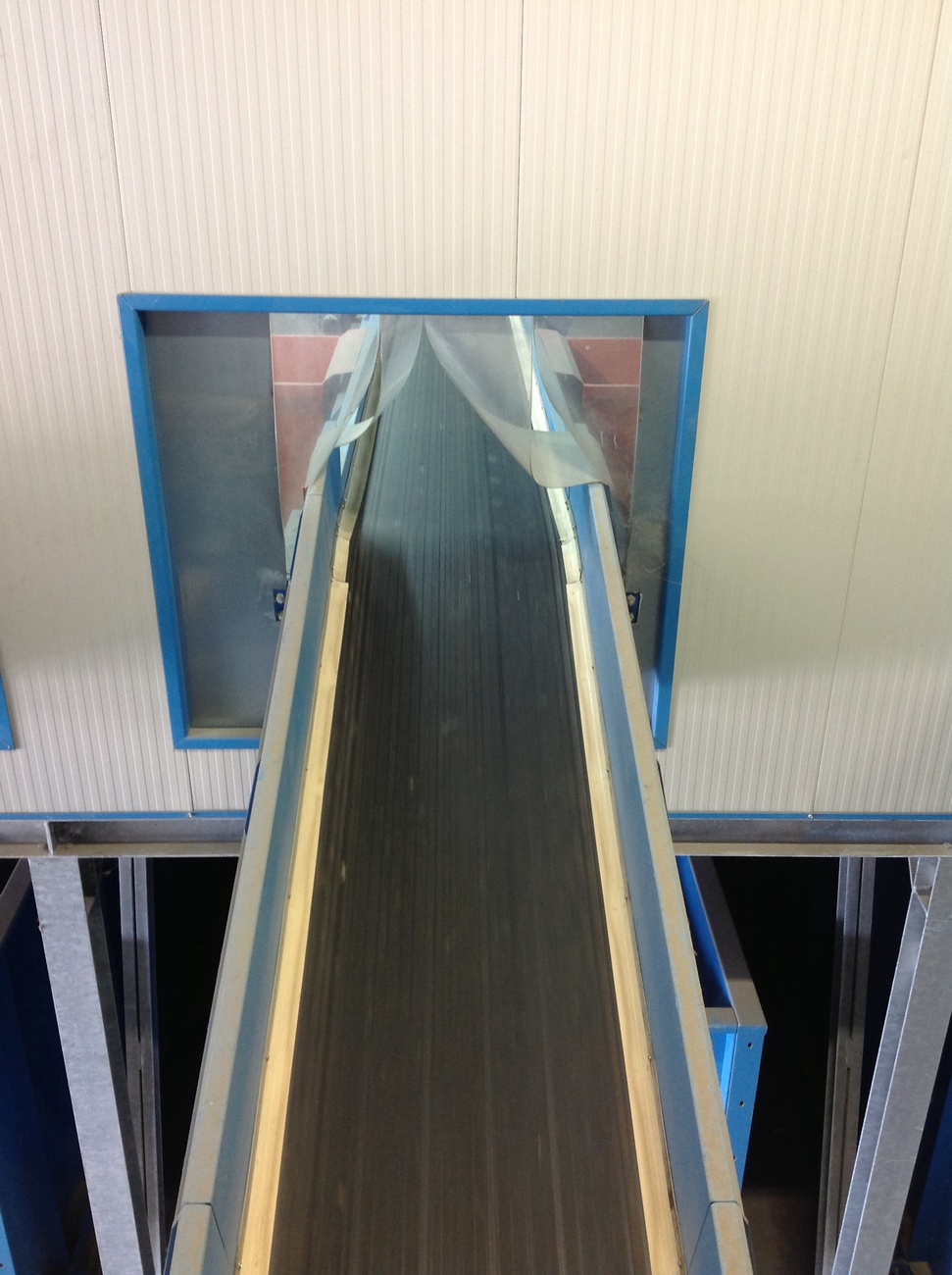

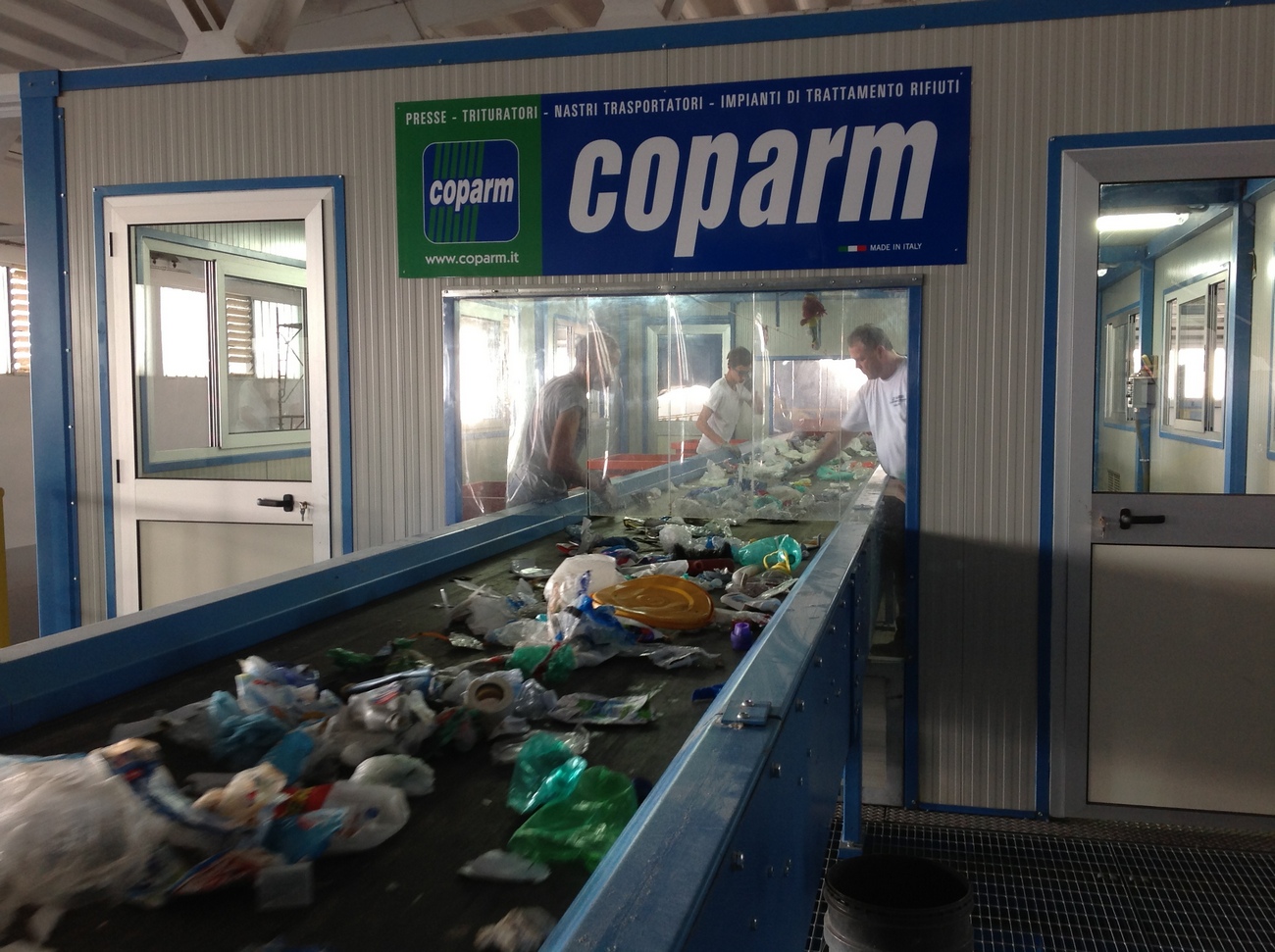

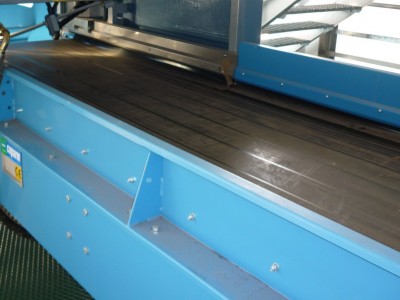

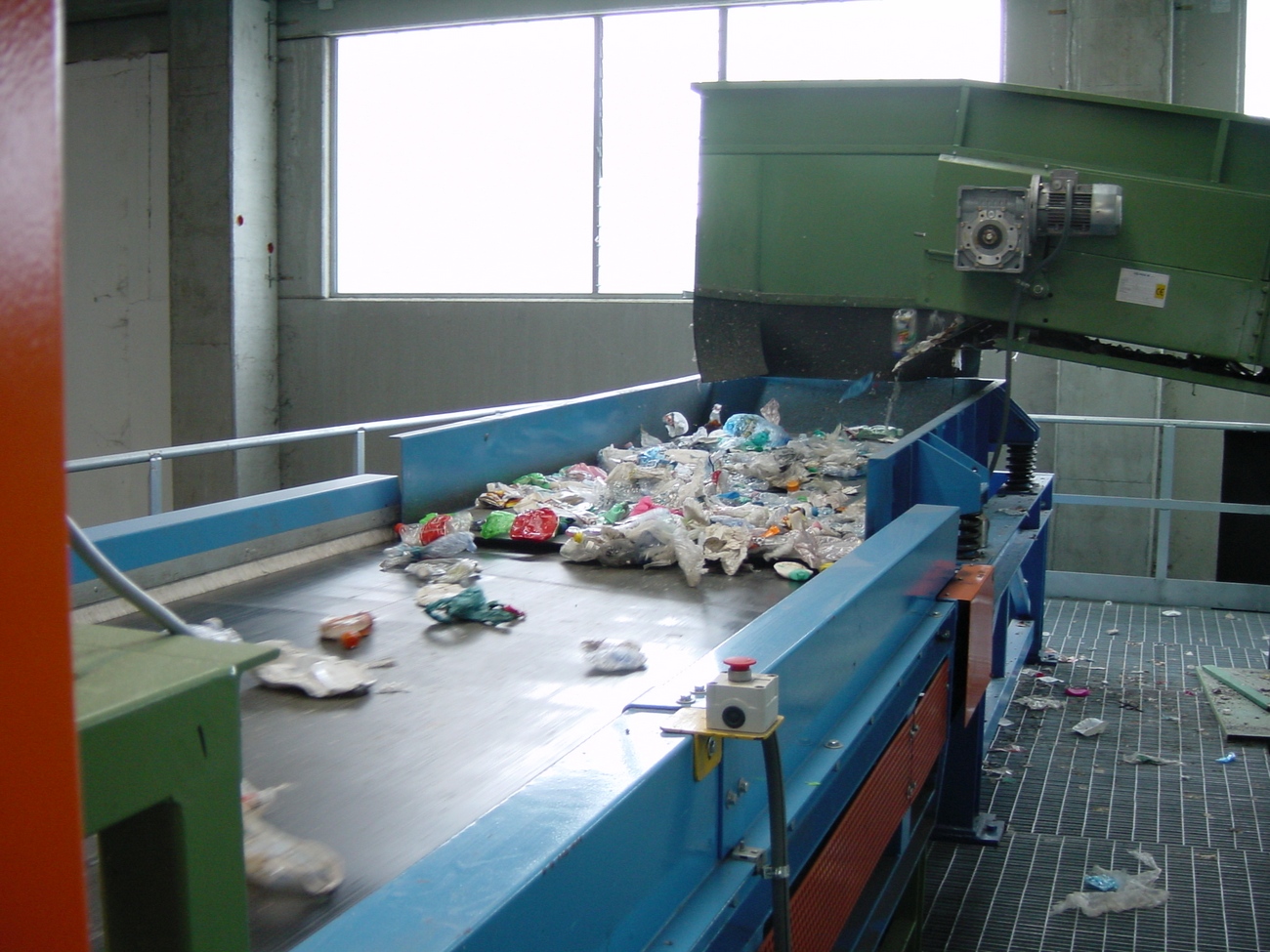

Waste rubber conveyor belts series TG |
|||
| TECHNICAL CHARACTERISTICS | TG 1000 | TG 1200 | TG 1400 |
| Type of belt: | Rubber belt | Rubber belt | Rubber belt |
| Interaxial length: | Variable | Variable | Variable |
| Total width: | 1.330 mm | 1.530 mm | 1.730 mm |
| Working width: | 1.000 mm | 1.200 mm | 1.400 mm |
| Type of belt: | EP 400/3 plys oil proof | EP 400/3 plys oil proof | EP 400/3 plys oil proof |
| Inclination: | Variable | Variable | Variable |
| Support rollers pitch: | 1.000 mm | 1.000 mm | 1.000 mm |
| Return rollers pitch: | 2.000 mm | 2.000 mm | 2.000 mm |

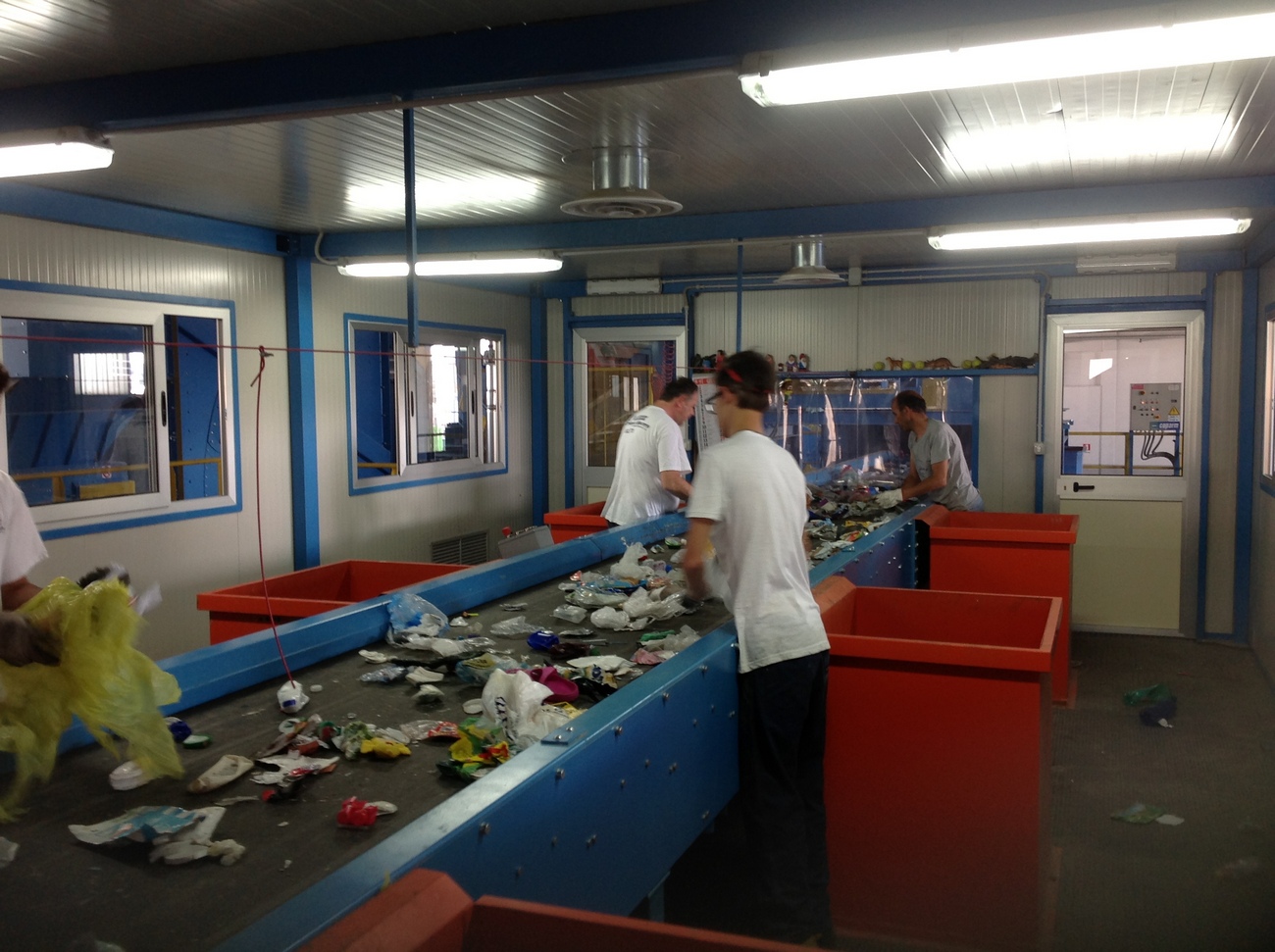

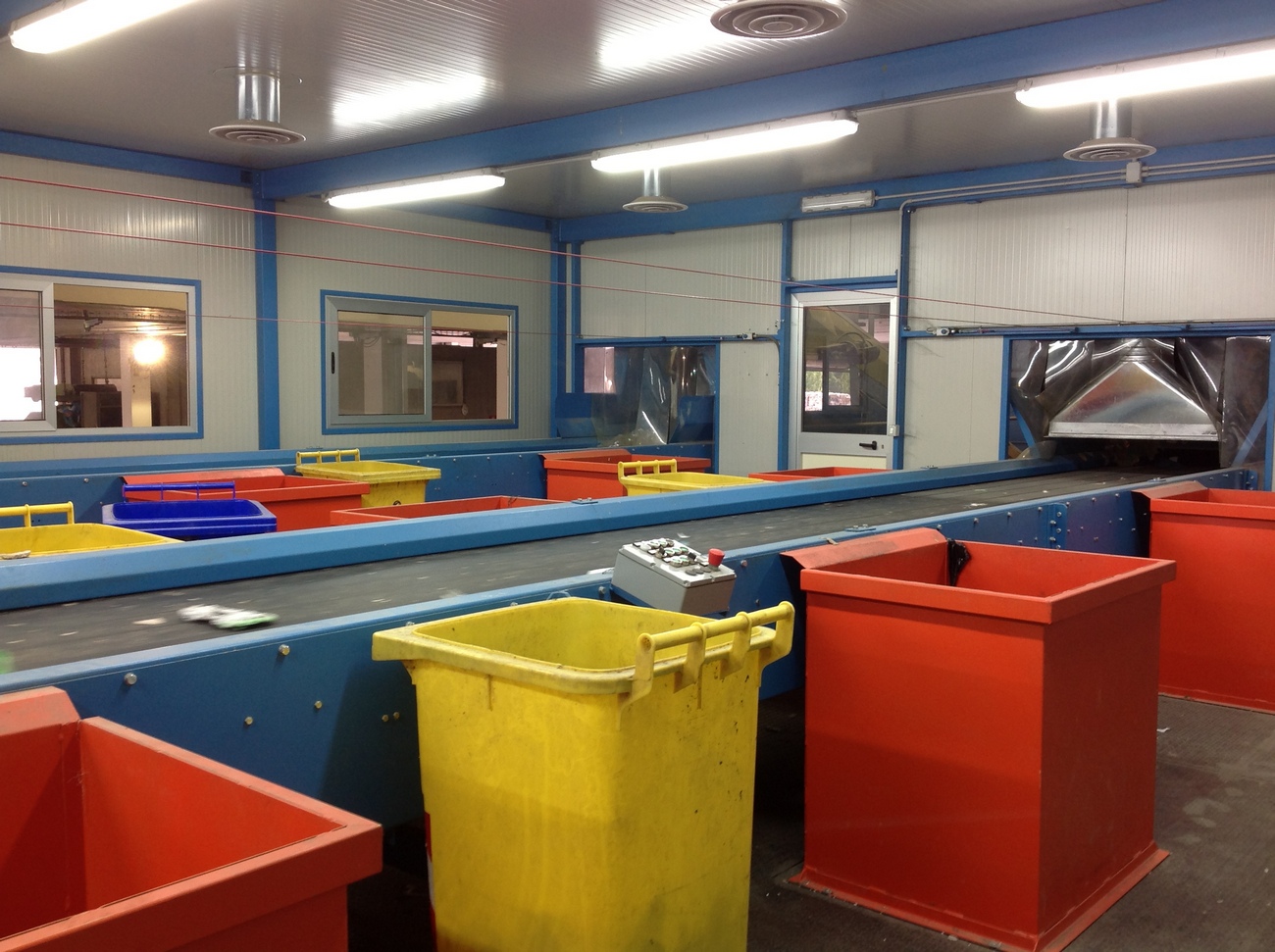

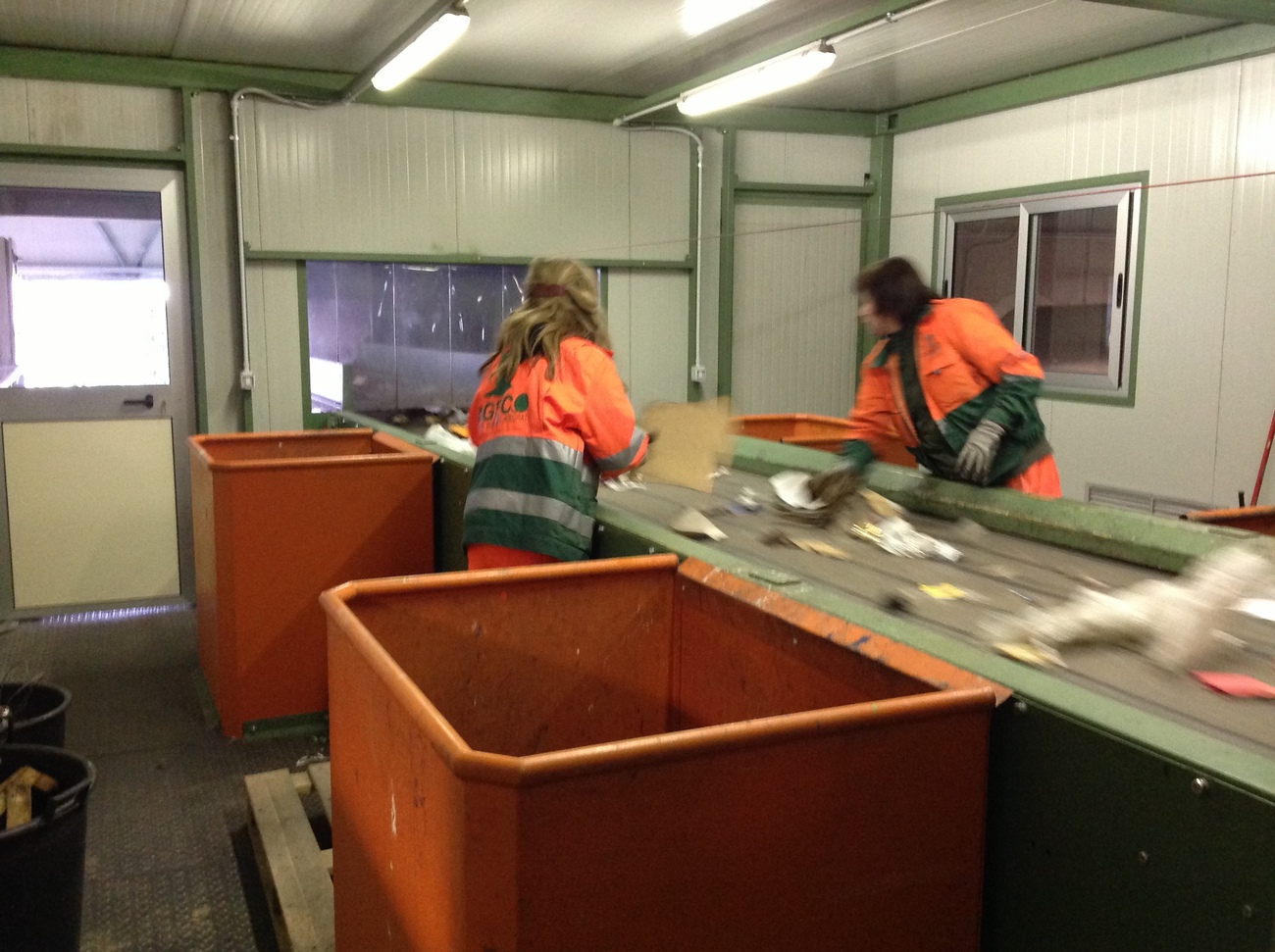

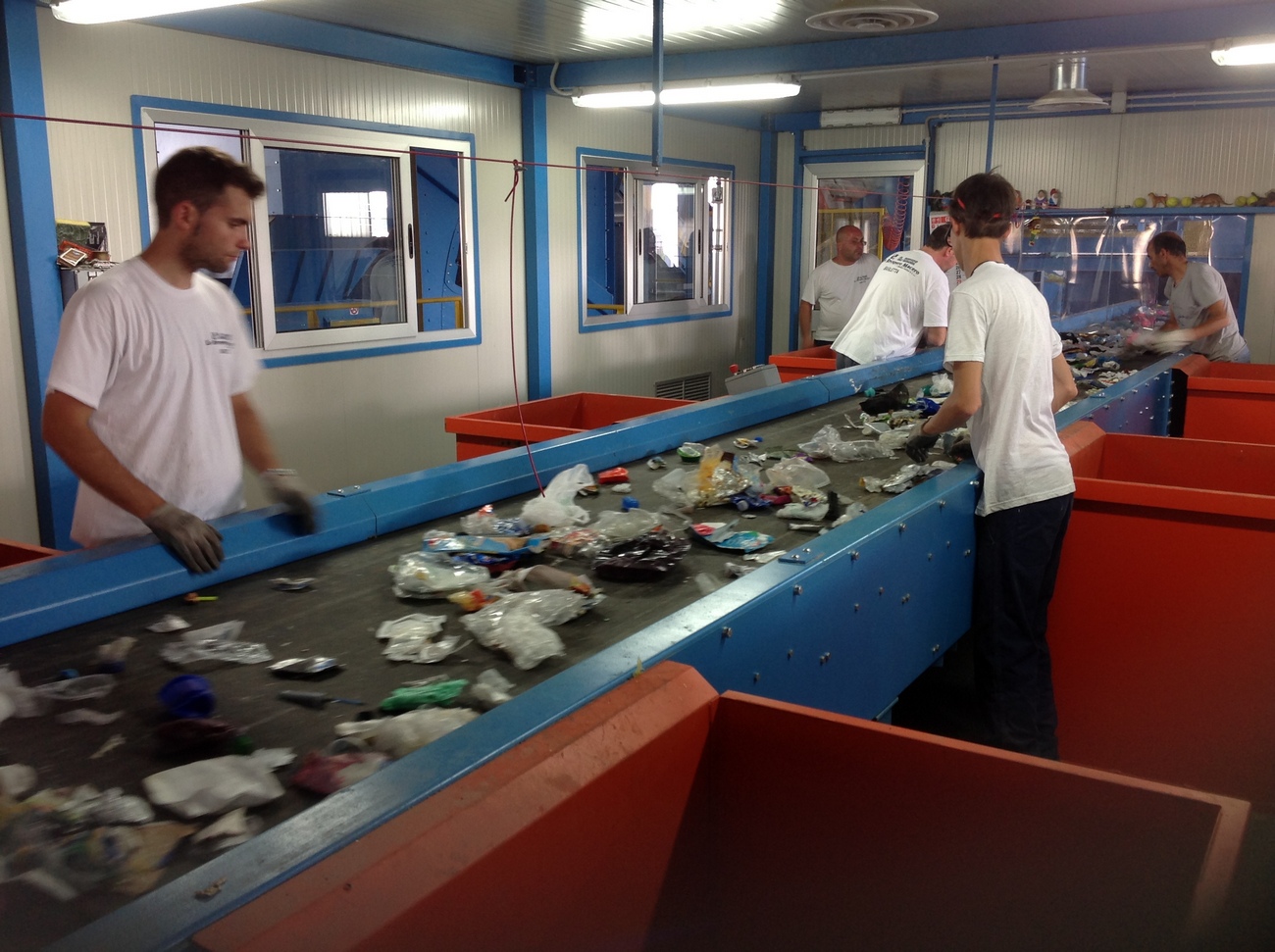

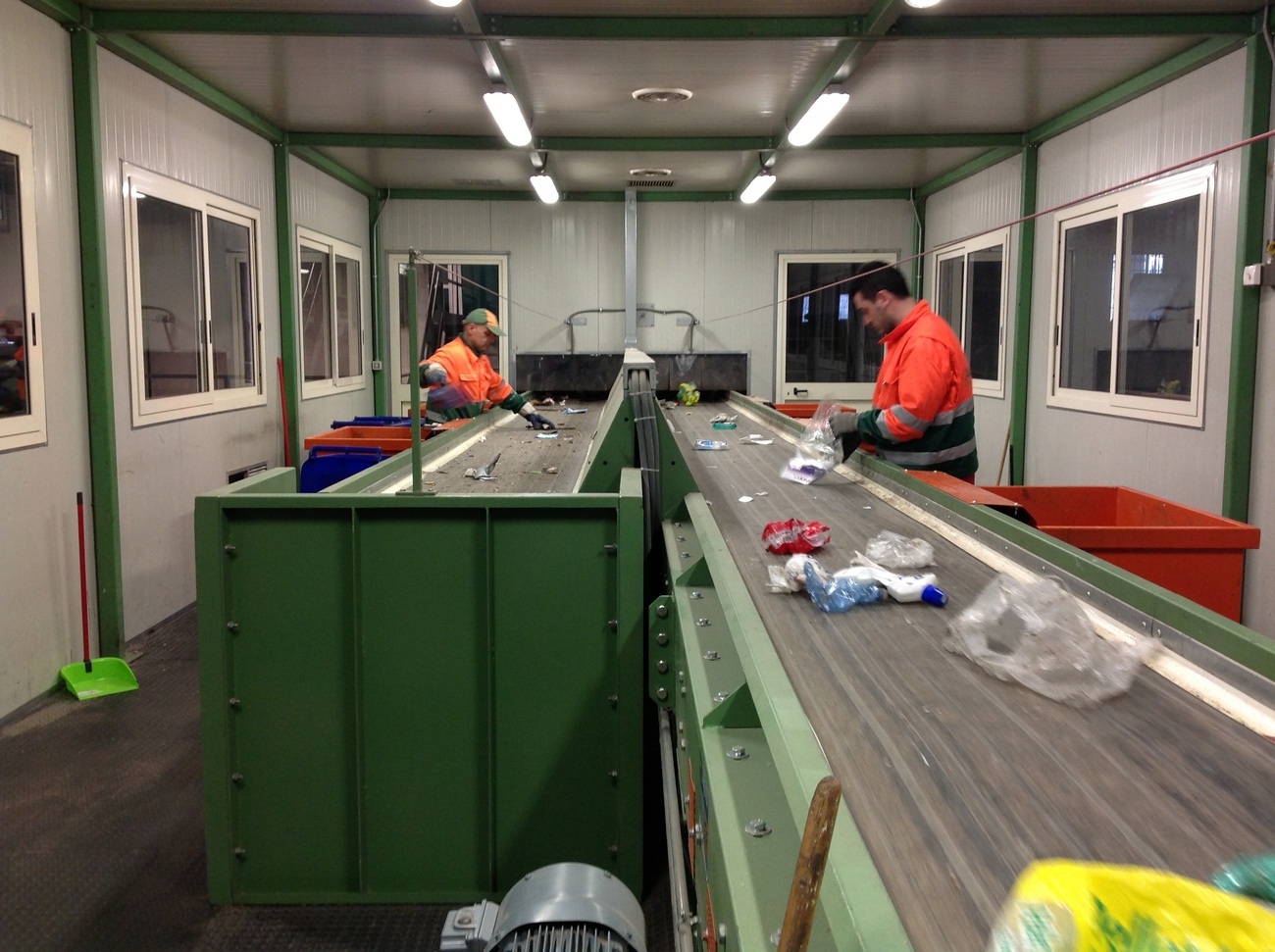

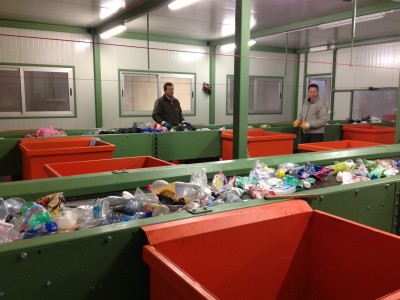

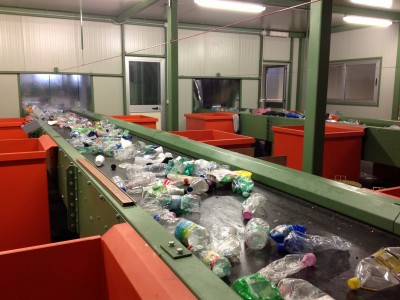

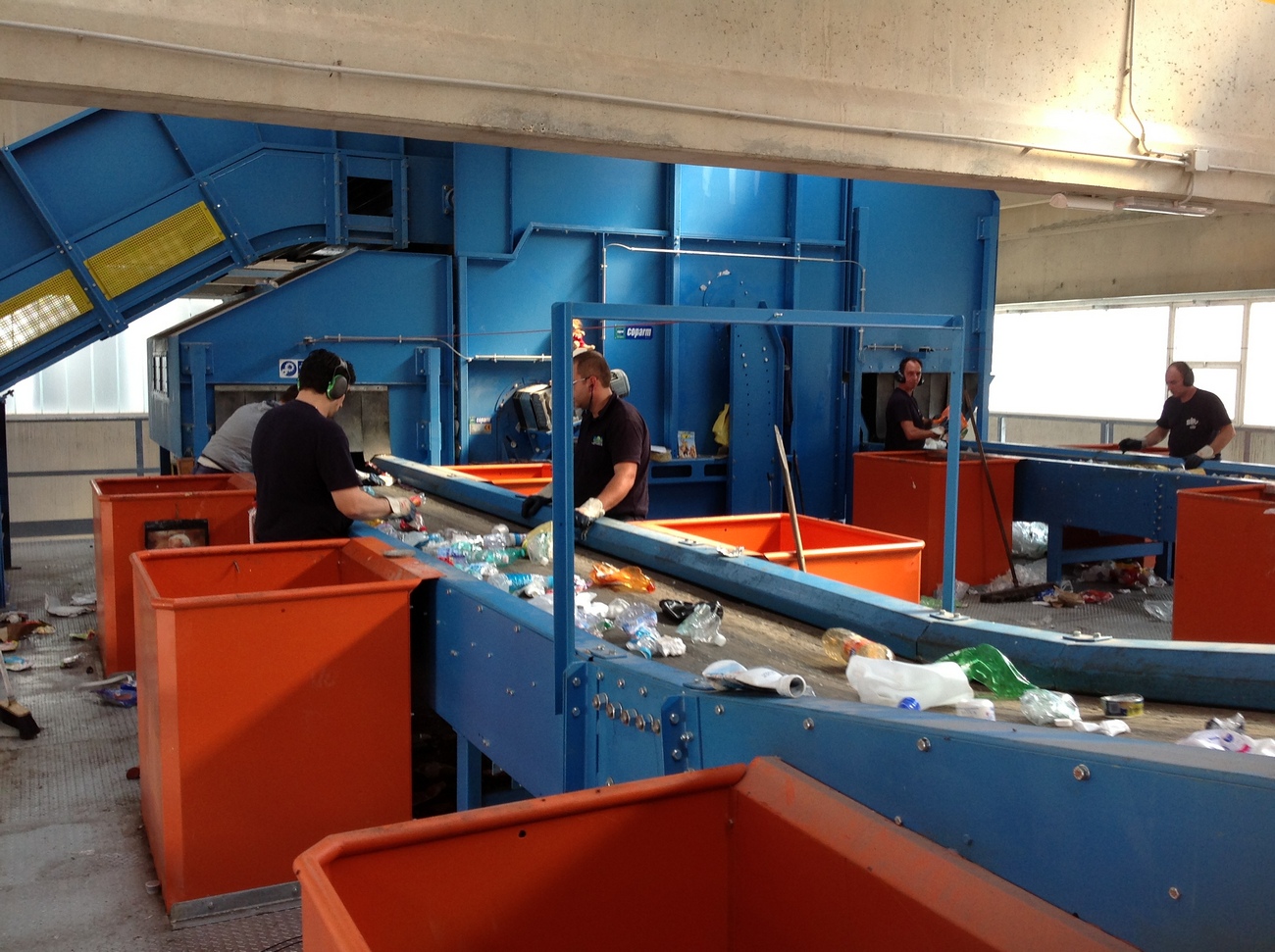

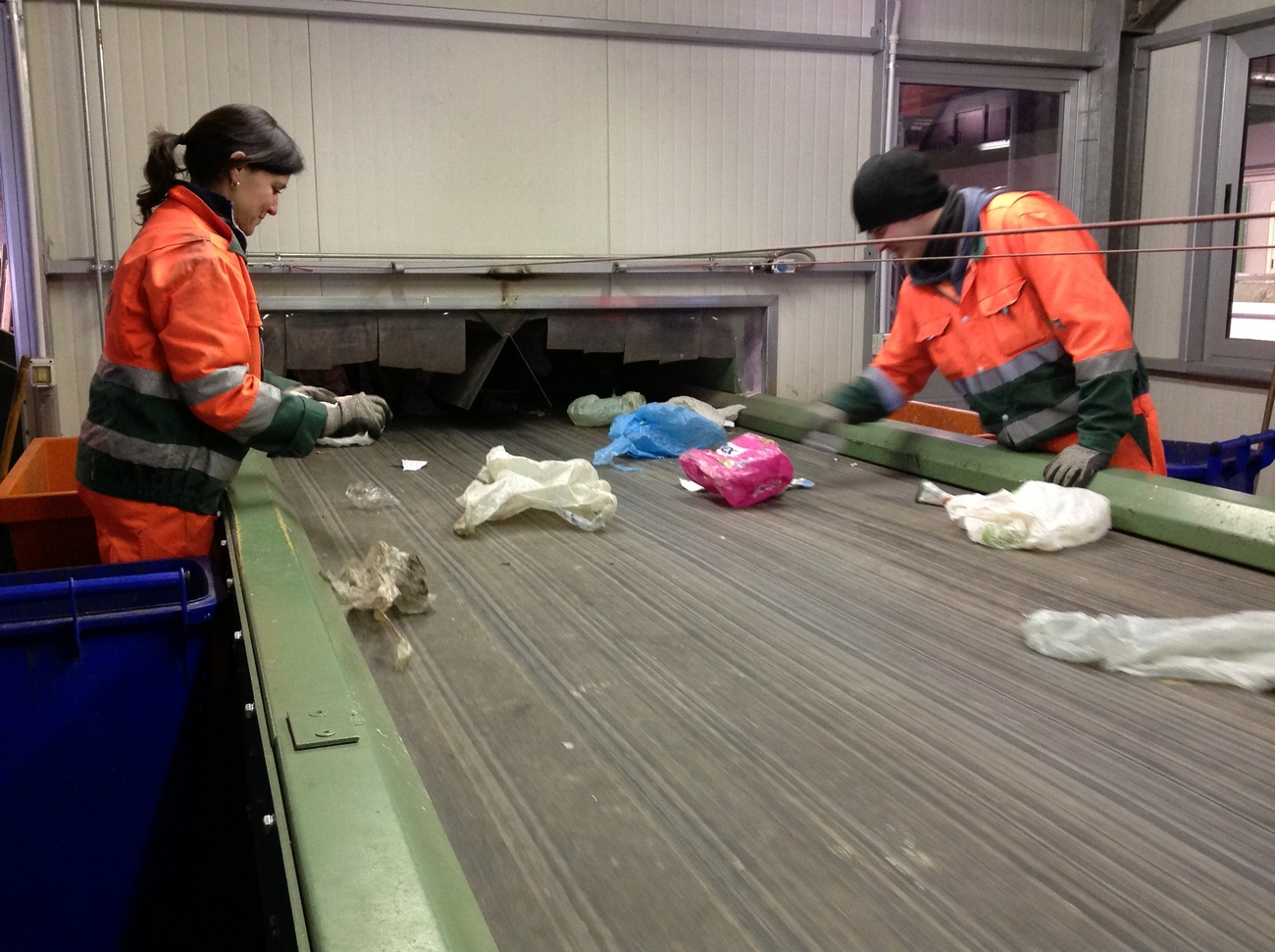

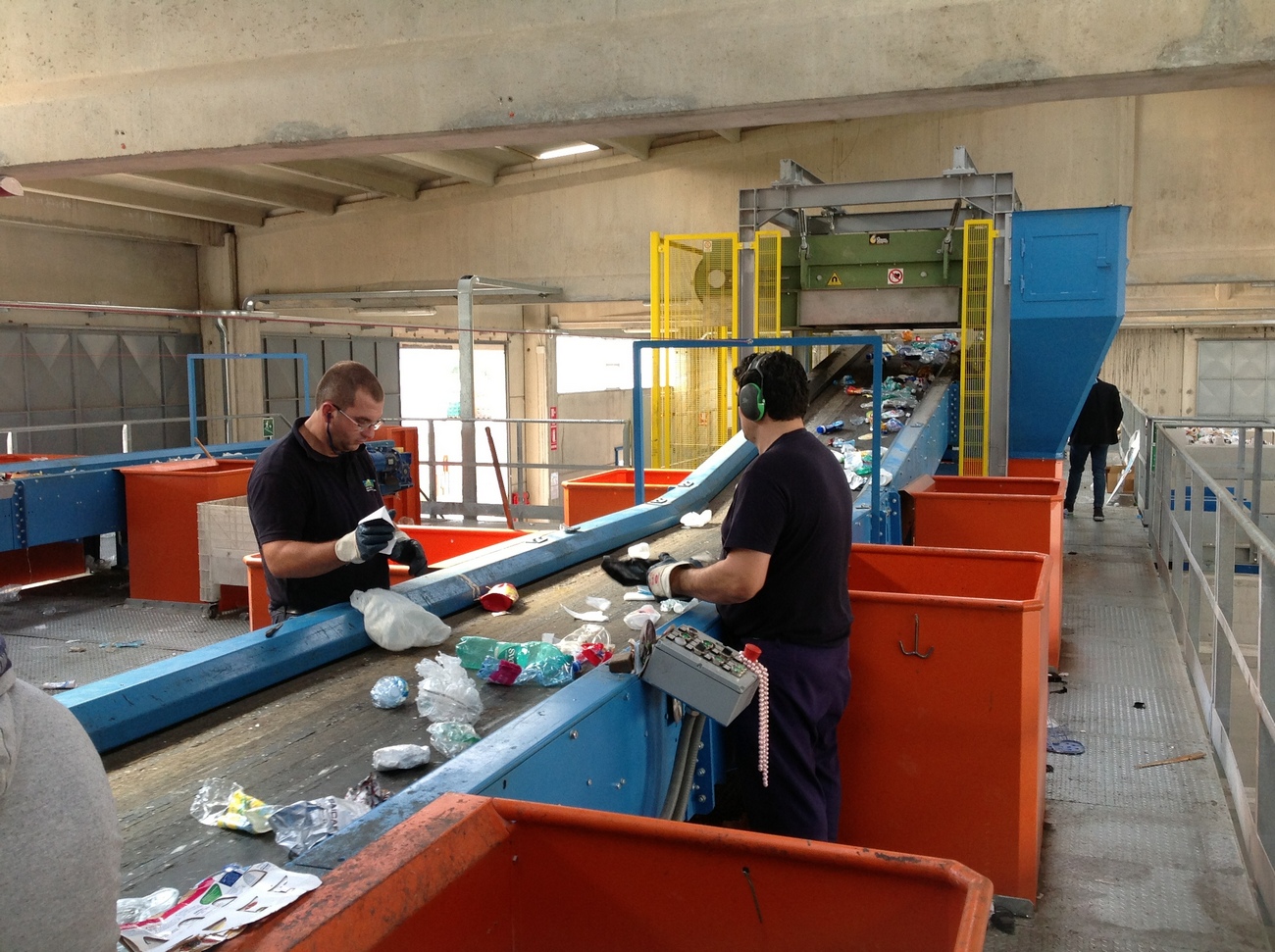

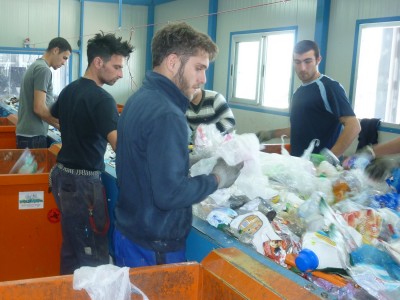

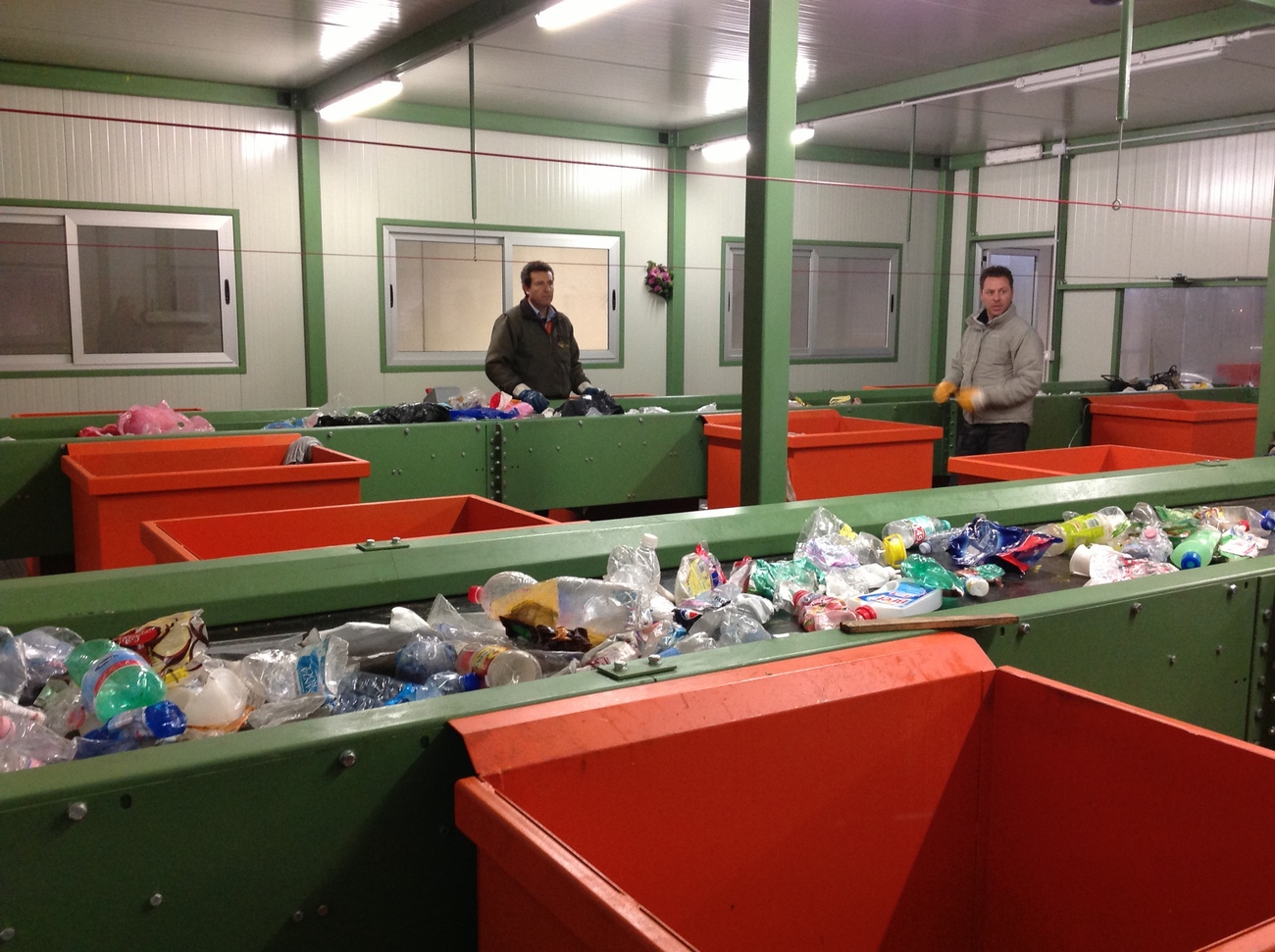

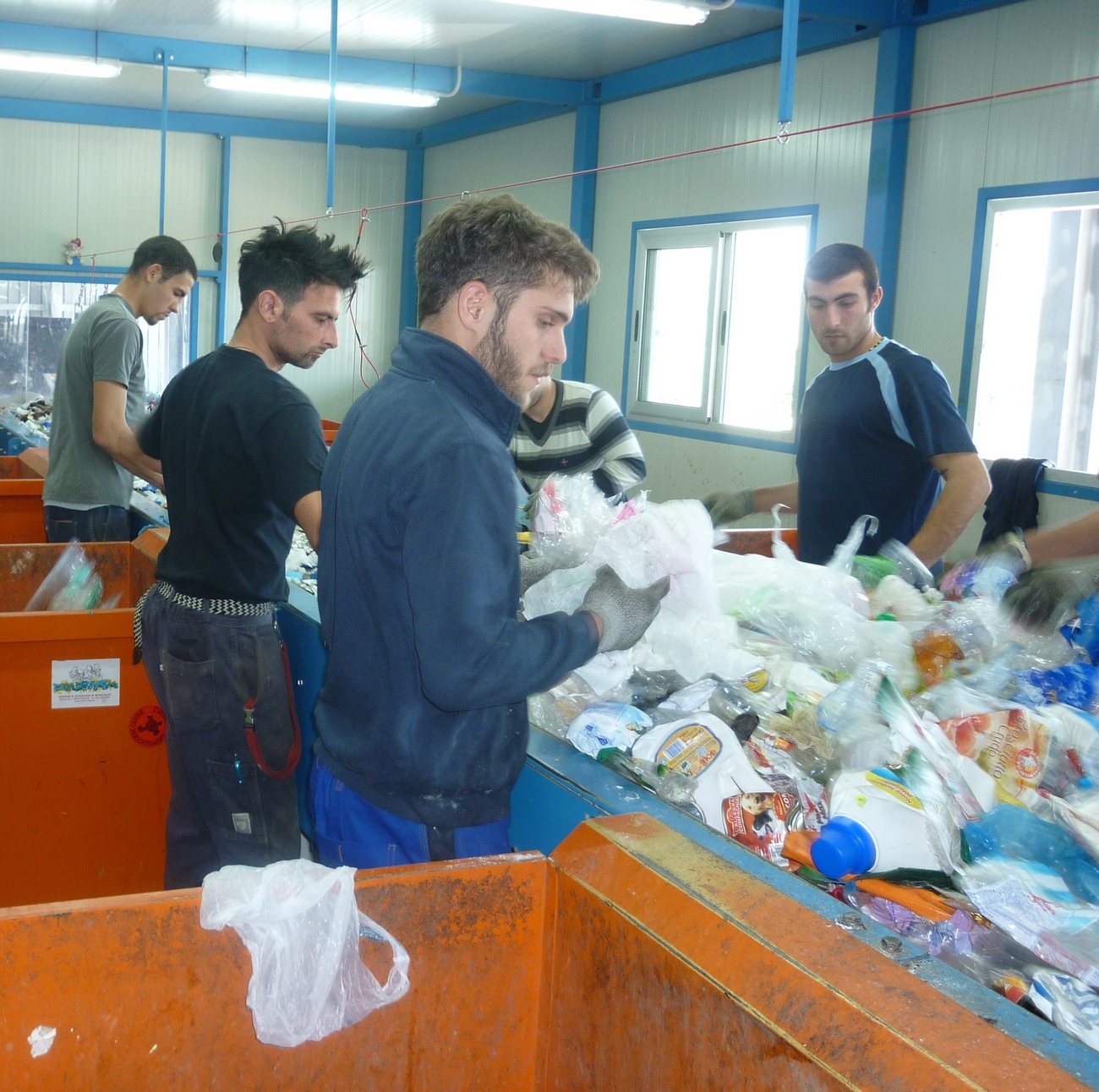

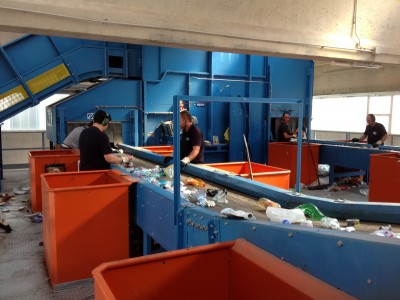

Waste rubber conveyor belts for manual sorting series TGS |
|||
| TECHNICAL CHARACTERISTICS | TGS 1000 | TGS 1200 | TGS 1400 |
| Type of belt: | Sorting rubber conveyor | Sorting rubber conveyor | Sorting rubber conveyor |
| Interaxial length: | Variable | Variable | Variable |
| Total width: | 1.330 mm | 1.530 mm | 1.730 mm |
| Working width: | 1.000 mm | 1.200 mm | 1.400 mm |
| Type of belt | EP 400/3 plys oil proof | EP 400/3 plys oil proof | EP 400/3 plys oil proof |
| Boars height | 100 mm | 100 mm | 100 mm |
| Support rollers pitch: | 1.000 mm | 1.000 mm | 1.000 mm |
| Returning rollers pitch: | 2.000 mm | 2.000 mm | 2.000 mm |

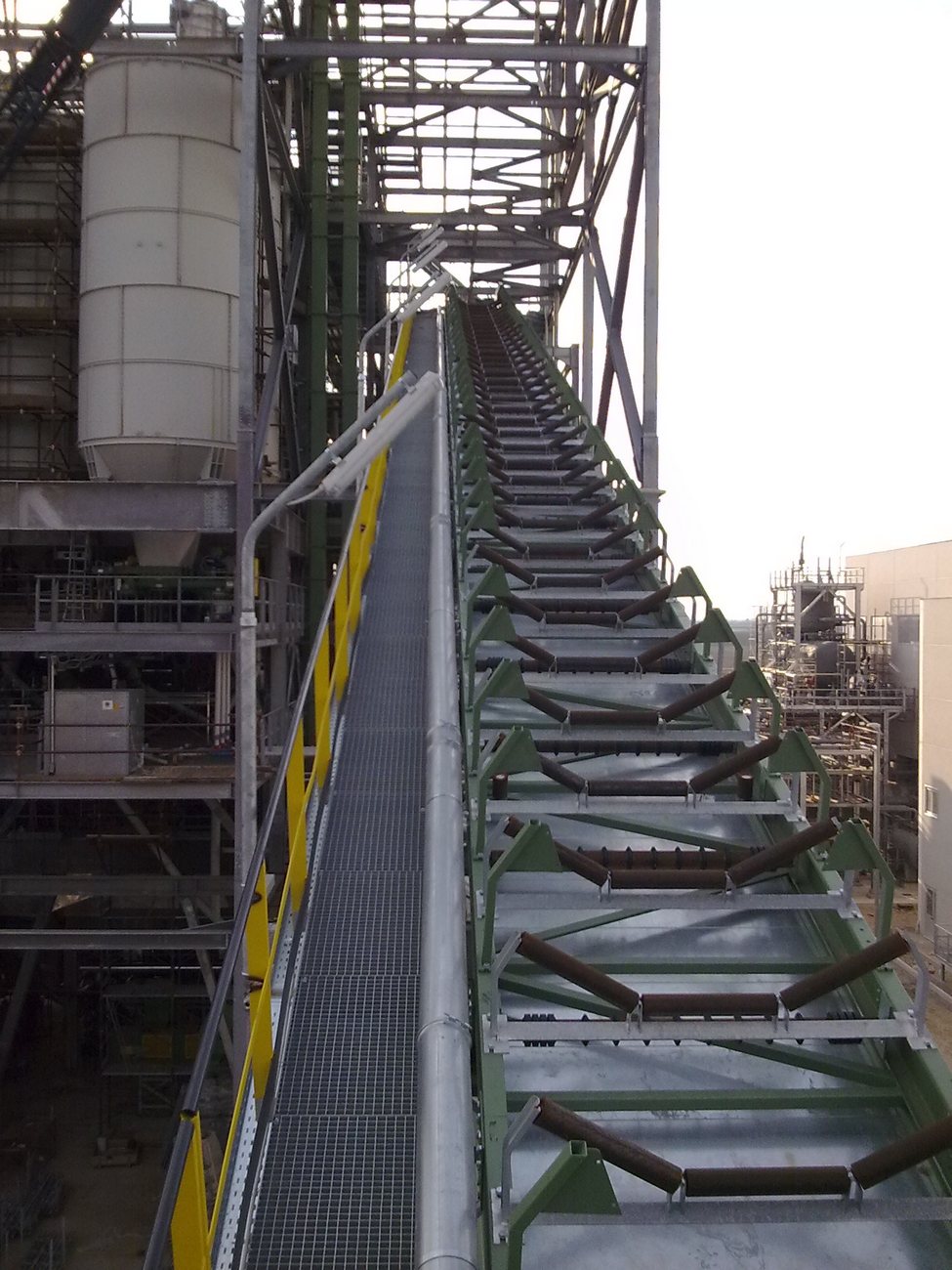

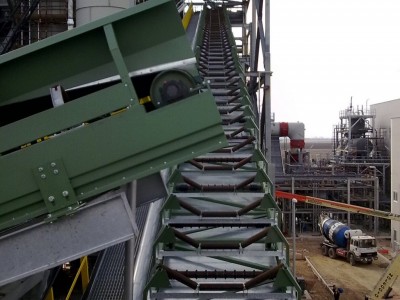

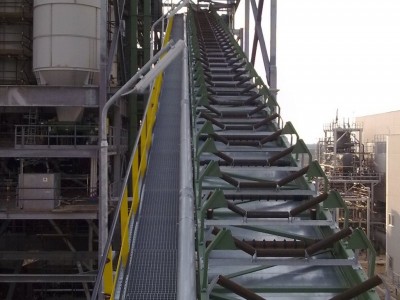

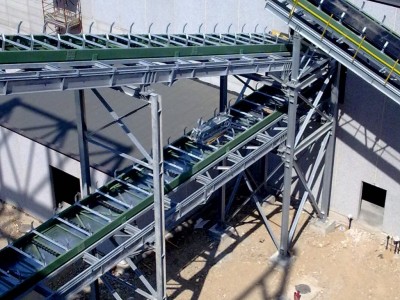

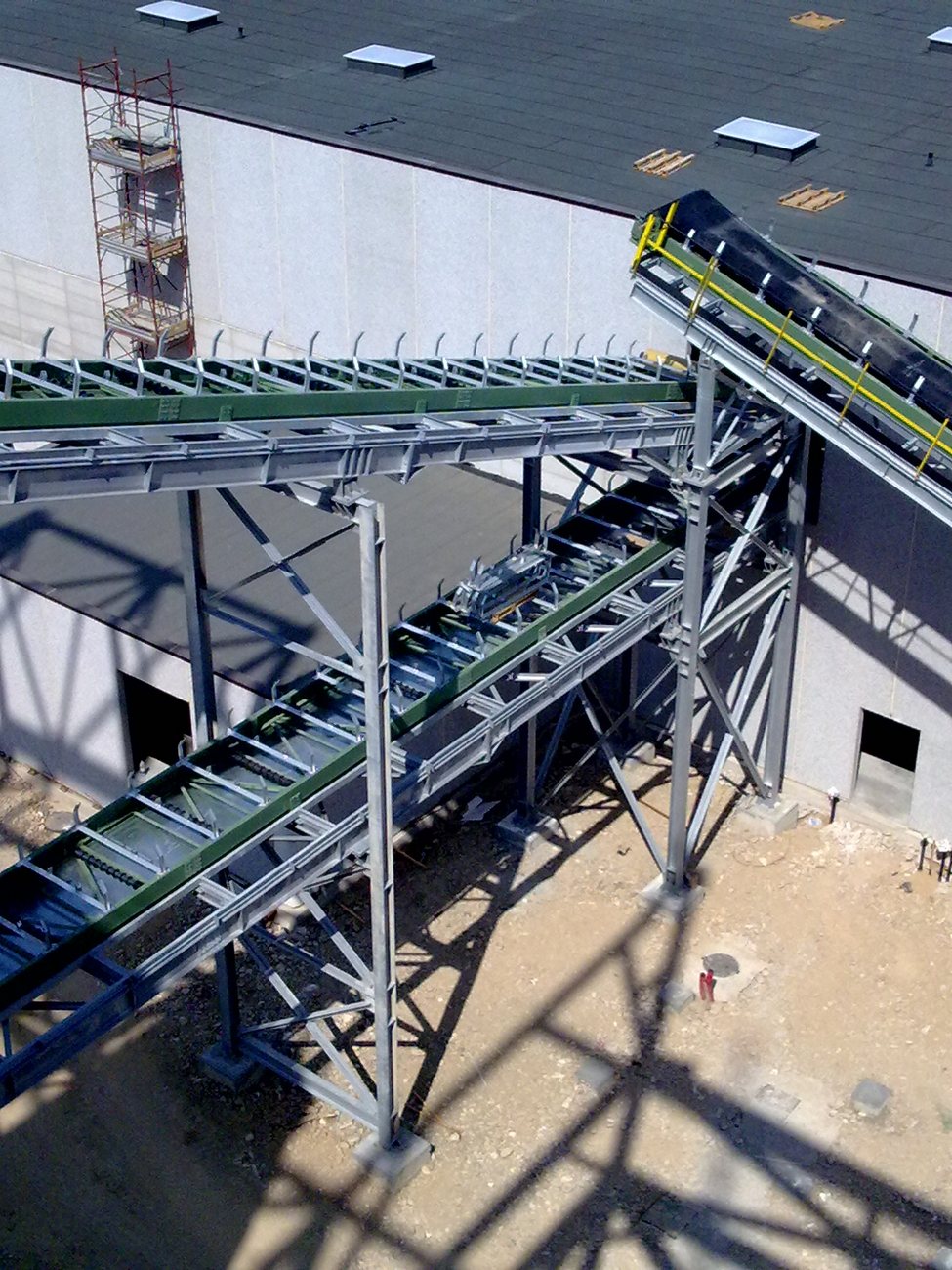

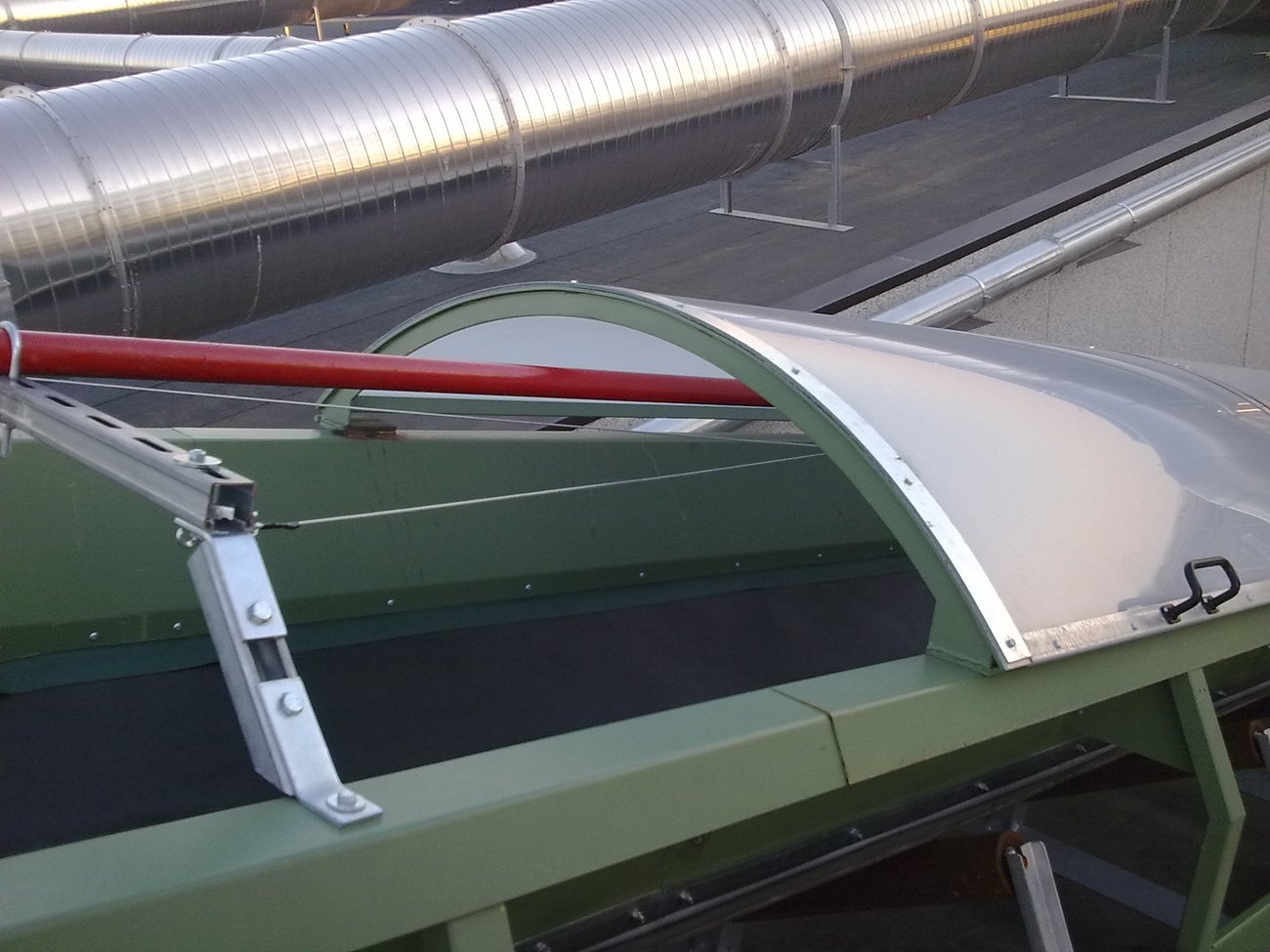

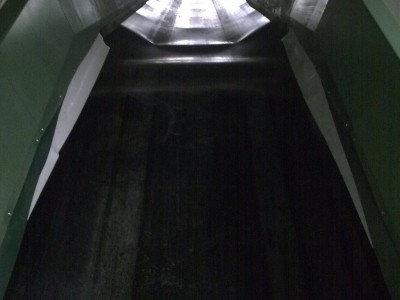

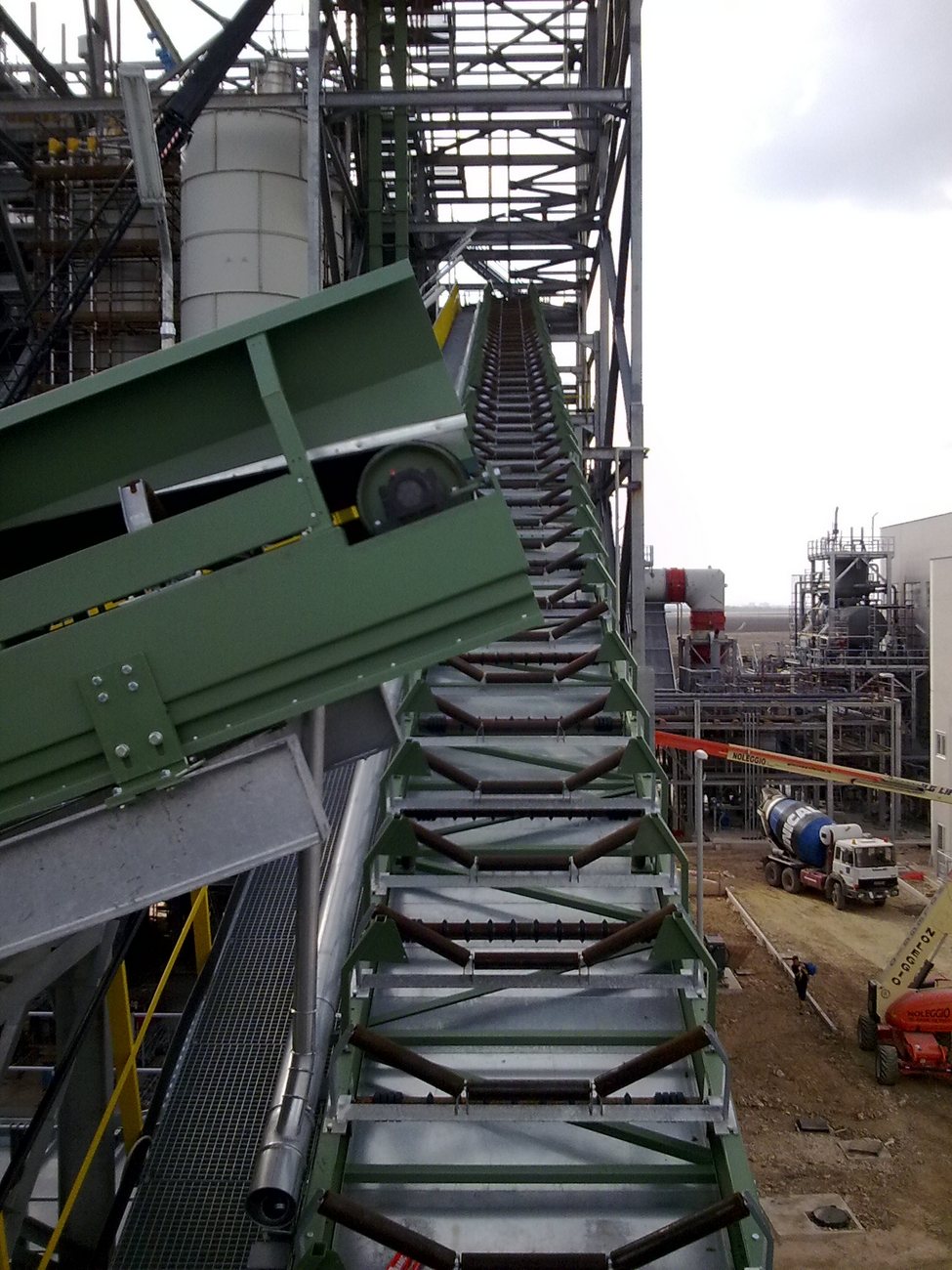

Three rollers conveyor series TGA |
|||
| TECHNICAL CHARACTERISTICS | TGA 1000 | TGA 1200 | TGA 1400 |
| Type of belt: | Three roller conveyor | Three roller conveyor | Three roller conveyor |
| Inteaxial length: | Variable | Variable | Variable |
| Total width: | 1.230 mm | 1.430 mm | 1.630 mm |
| Working width: | 980 mm | 1.180 mm | 1.380 mm |
| Type of belt: | EP 400/3 plys oil proof | EP 400/3 plys oil proof | EP 400/3 plys oil proof |
| Boards heigth: | 300 mm | 300 mm | 300 mm |
| Rollers diameter: | 89 mm | 89 mm | 89 mm |
| Rollers length: | 258 + 508 + 258 mm | 258 + 708 + 258 mm | 258 + 908 + 258 mm |
Coparm is leader in to the planning, production and assembly of sorting systems and components for the waste disposal and recycling industry world-wide.
We offer you a tailor-made full service, from conceptual design to planning, production, modernisation, optimisation, assembly, start-up, conversions, disassembly, maintenance and servicing of components to complete recycling and sorting systems. You can count on us to find the right solution for all your needs.
The efficiency of any recycling plant depends on the performance of its component parts.
For this reason, we are constantly striving to improve the functionality of our units so that they can handle mechanical production steps even more efficiently.
