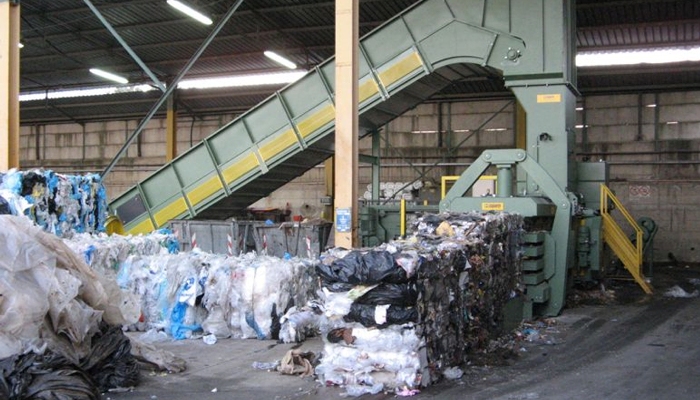

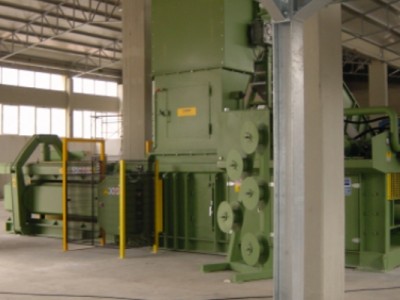

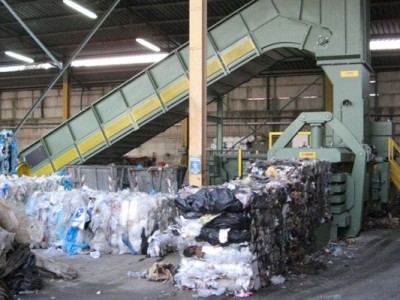

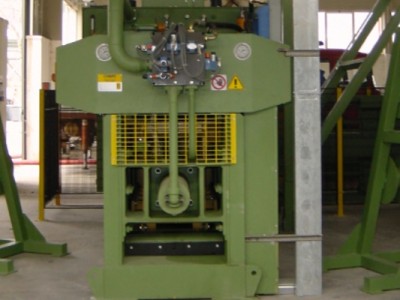

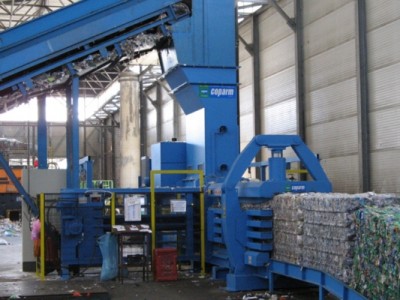

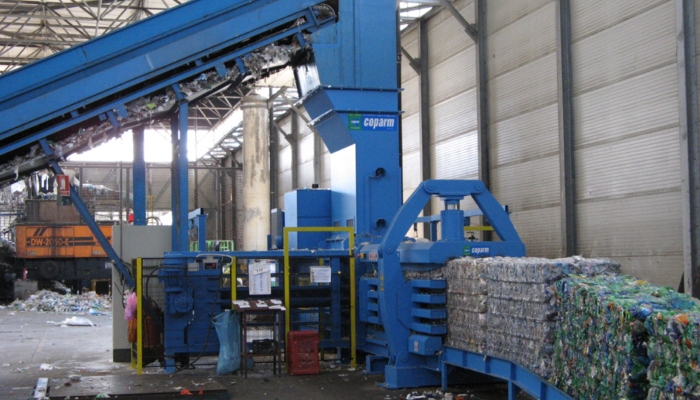

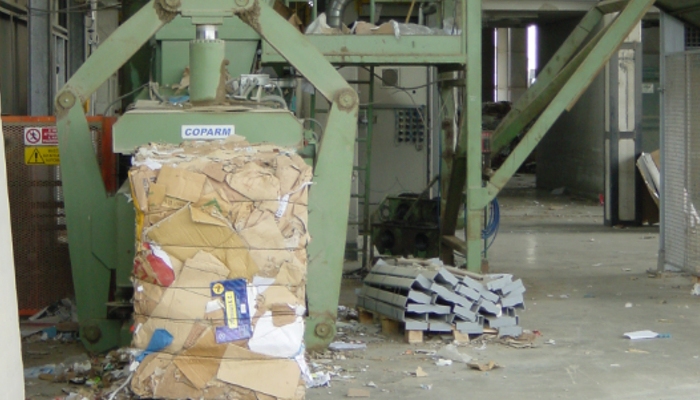

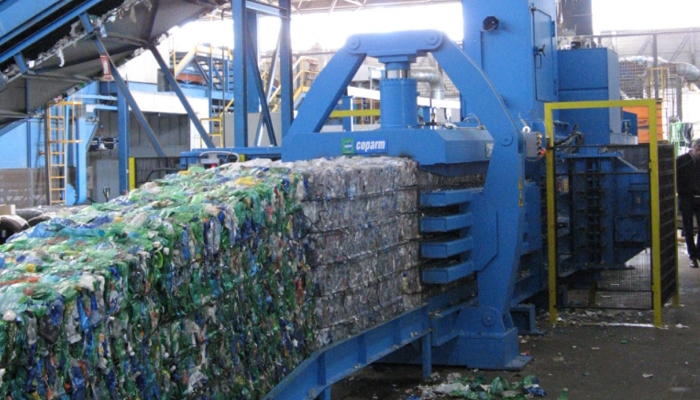

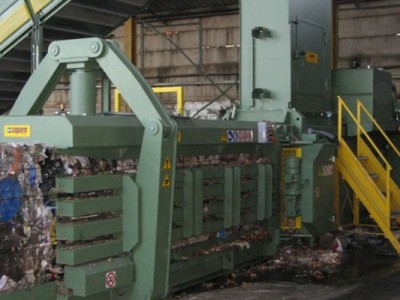

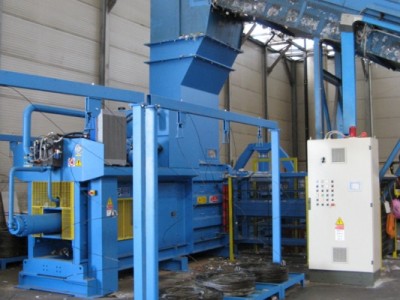

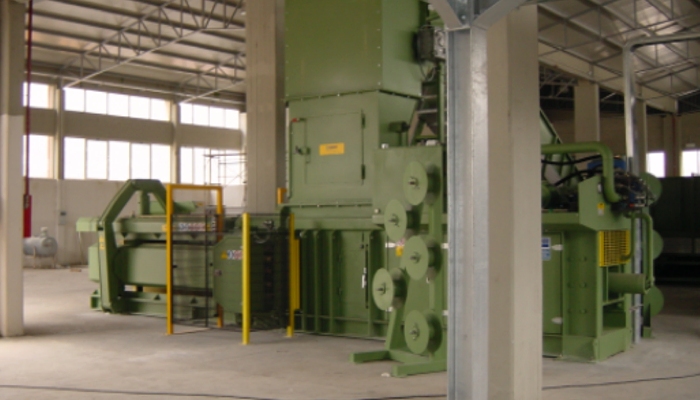

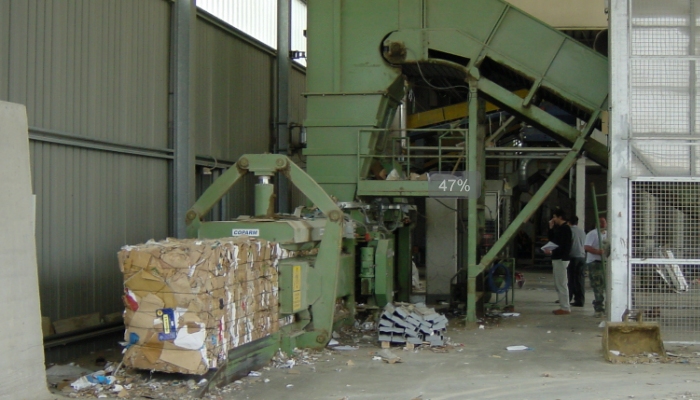

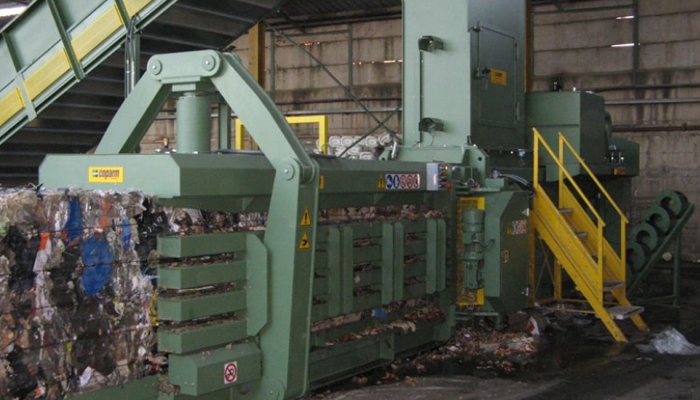

It ‘a press that presents interesting production characteristics that along with the size of the bale makes it a unique machine in its category. Also suitable for the packaging of paper, cardboard, plastic containers and plastic films.

Its volume capacity of treatment is very generous since the carriage pressing performs four idle cycles per minute and an average bale is completed in about two minutes. Press particularly suitable for small recovery, sorting centers, paper industry, paper and box.

Technical features

  • Bale size: 80 x 110 cm x Var. (Bxh)

  • Production: 8 – 12 ton/h

  • Production volume: 320 mc/h

  • Power: 60 Hp – 45 Kw

  • Thrust: 80 ton

  • Cycles: N° 4 / min

  • Specific pressure: 9,2 Kg/cmq

  • Binding: N° 5 horizontal wires

  • Ligature wire: Wire iron

  • Hopper Size: 720 x 1500 mm

Supports for bobbins 1000 kg / each
Specific Binding system for waste
Reinforced trolley for Waste
Wirbulator in the hopper for newspapers and magazines
Color other than the standard (RAL 6011)
Soundproofing system
Diagnostic press supervisor
Installation of dust extraction hopper
System for the automatic weighing of the bale
Binding with plastic wire
