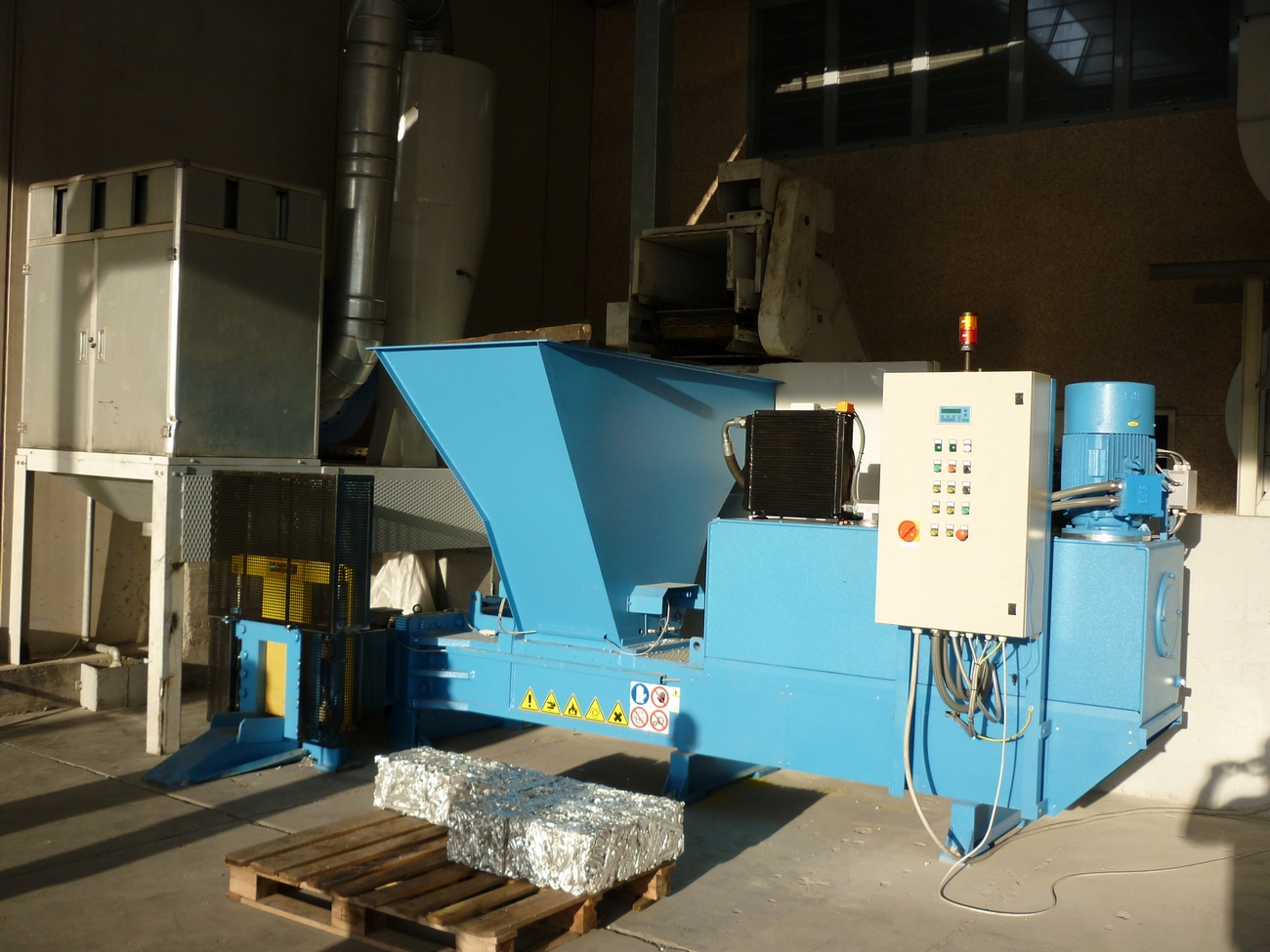

Baler for metals

Loading hopper : 635 x 420 mm

Bale size: 500 x 300 mm

Installed power: 15 kW

Thrust: 56 ton

Production: 1,5 – 2,0 ton/ h

Loading hopper: 1.080 x 880 mm

Bale size (bxh): 200 x 300 mm

Lower bale size: 700 x 490 mm

Compaction chamber:1.130 x 500 x 300

Specific pressure on material: 150 Kg/cmq

Installed power: 22 Kw

Thrust first compaction: 60 ton

Thrust second compaction: 90 ton

N° cycles: 2 per minute

Maximum pressure: 220 bar

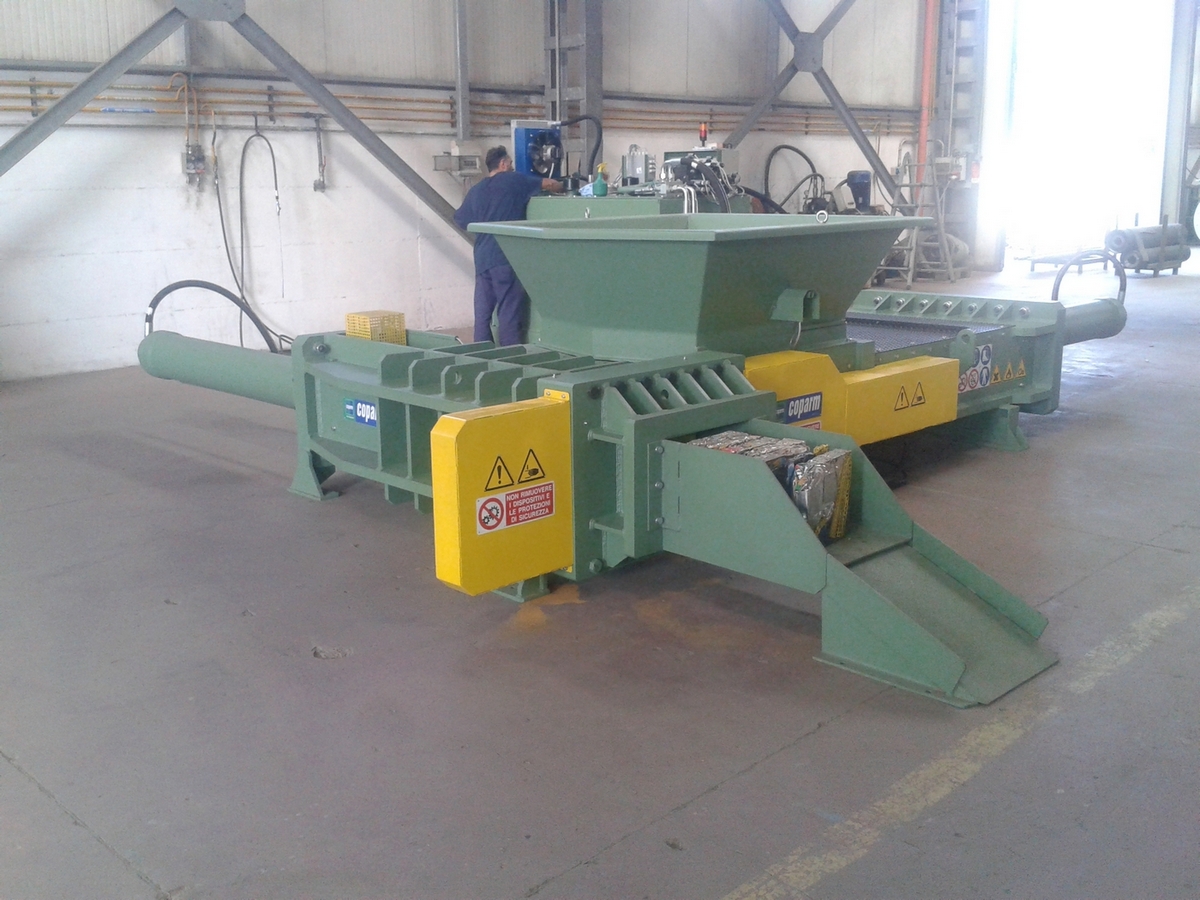

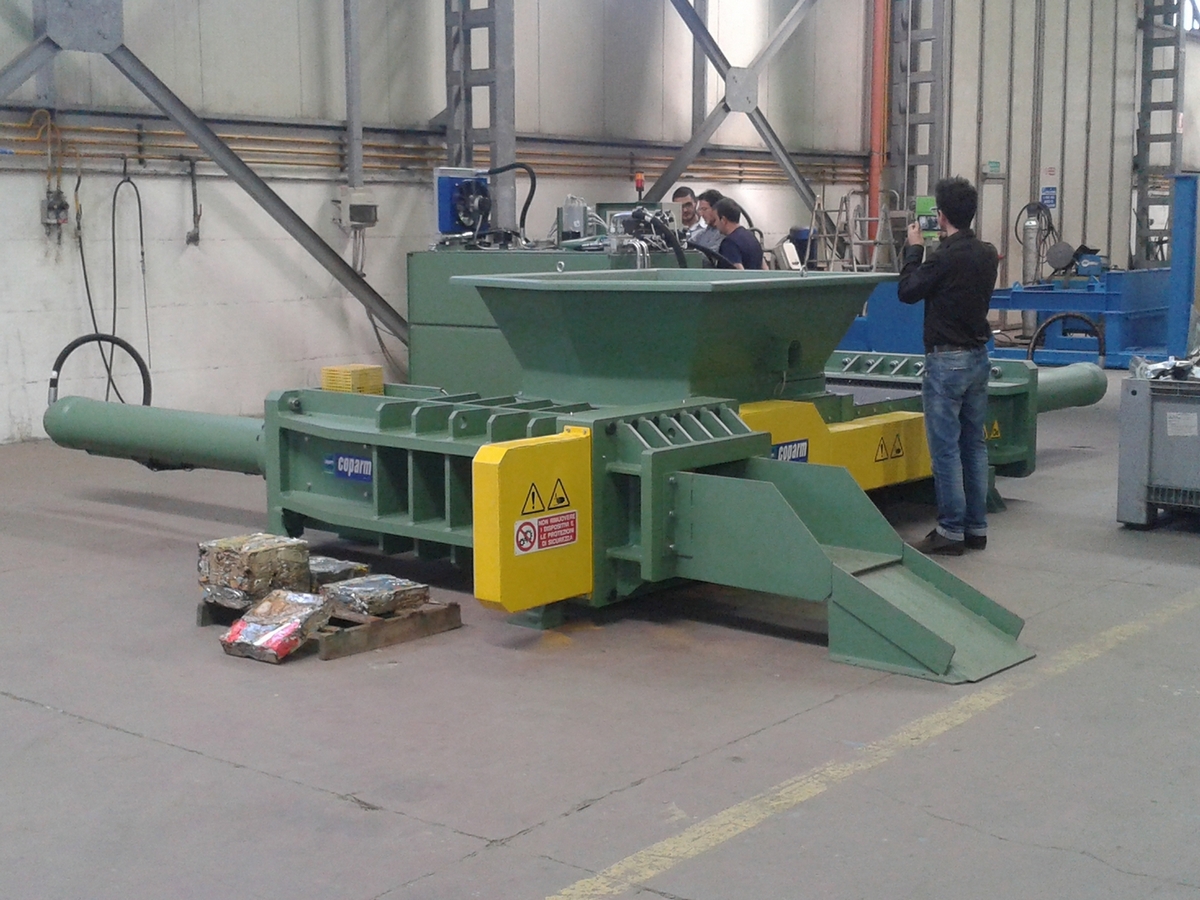

Loading hopper: 1.000 x 1.200 x 275 mm

Compression chamber: 1.400 x 1.000 x 300 mm

Bale size (bxh): 300 x 300 x var. mm

Longitudinal thrust: 75 ton

Transverse thrust: 100 ton

Working pressure: 240 bar

Specific pressure on material: 115 Kg/cmq

Electric motor: HP 50 +1,5

Duration of the idle cycle: 30 sec

Baling press weigth: 12.500 Kg

Weigth of the hidraulic control blocks: 3.000 Kg
