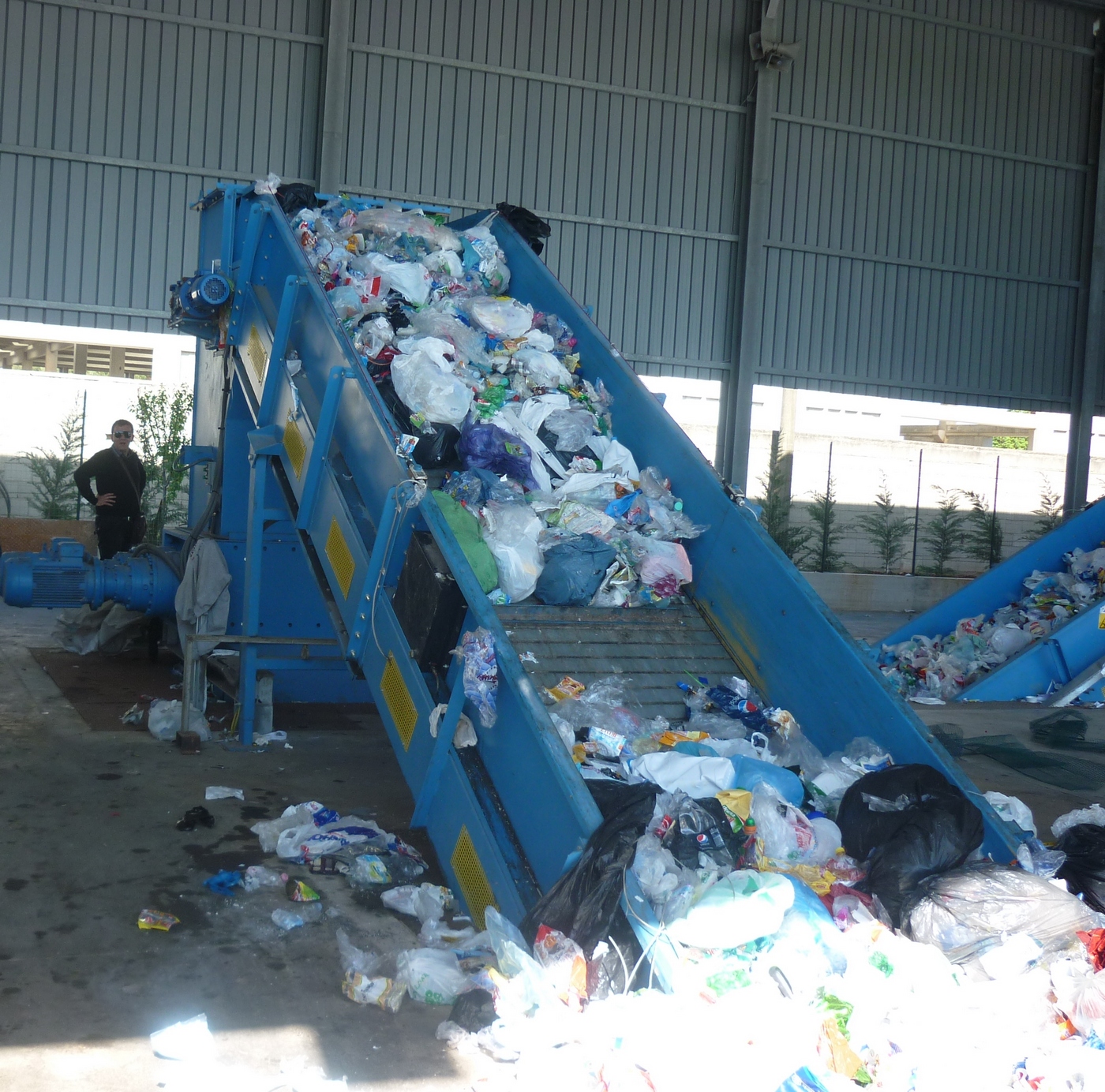

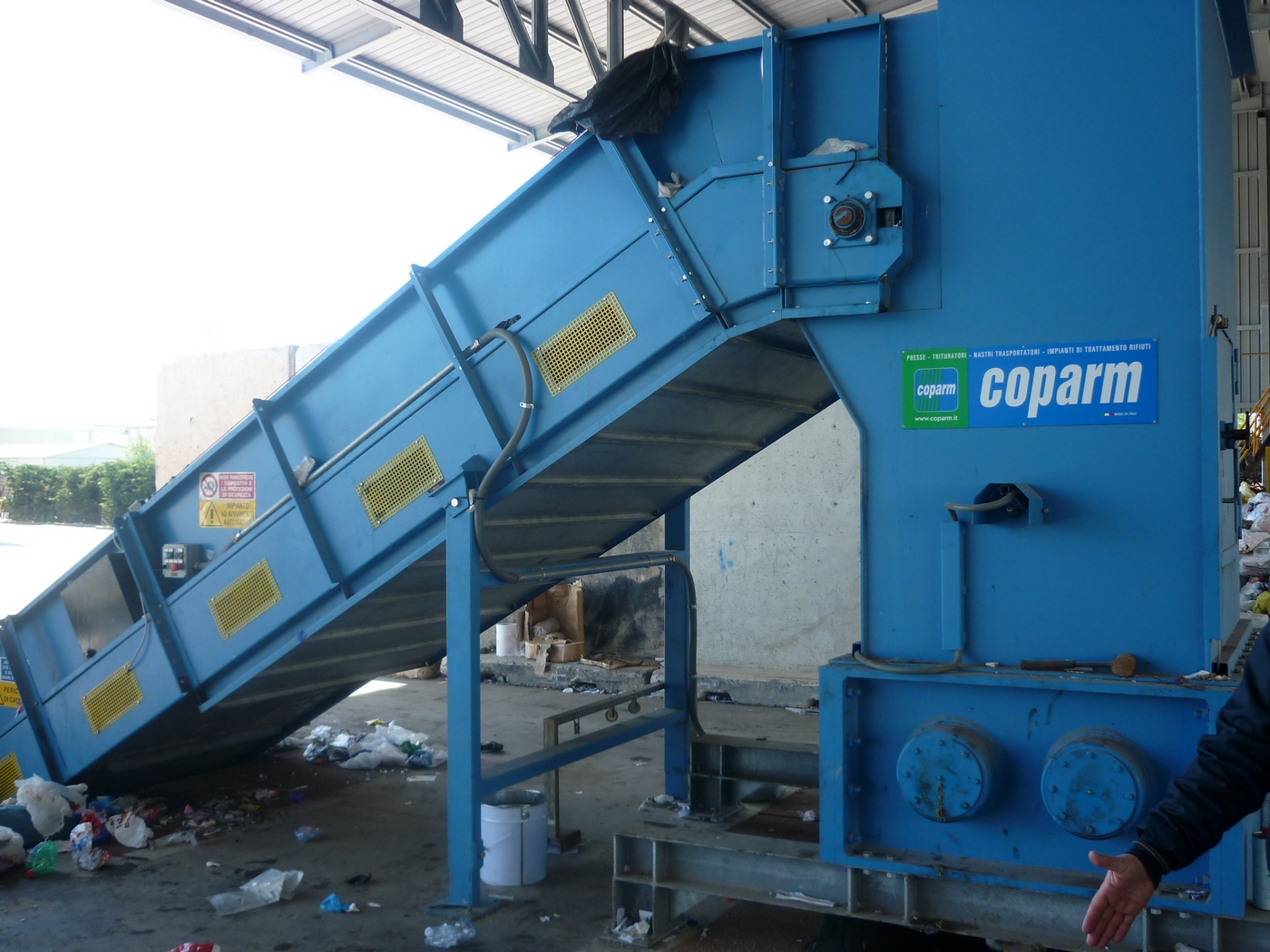

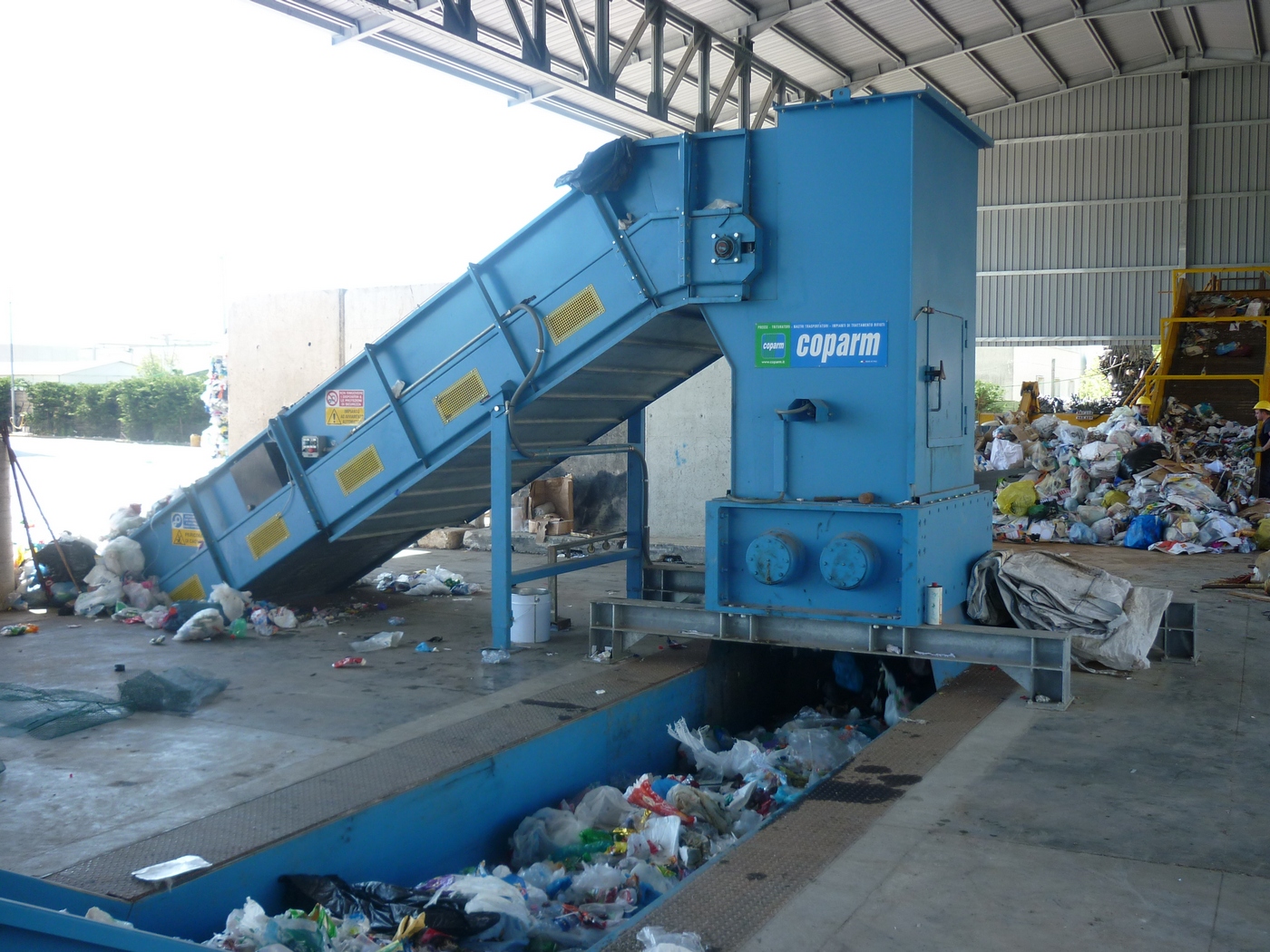

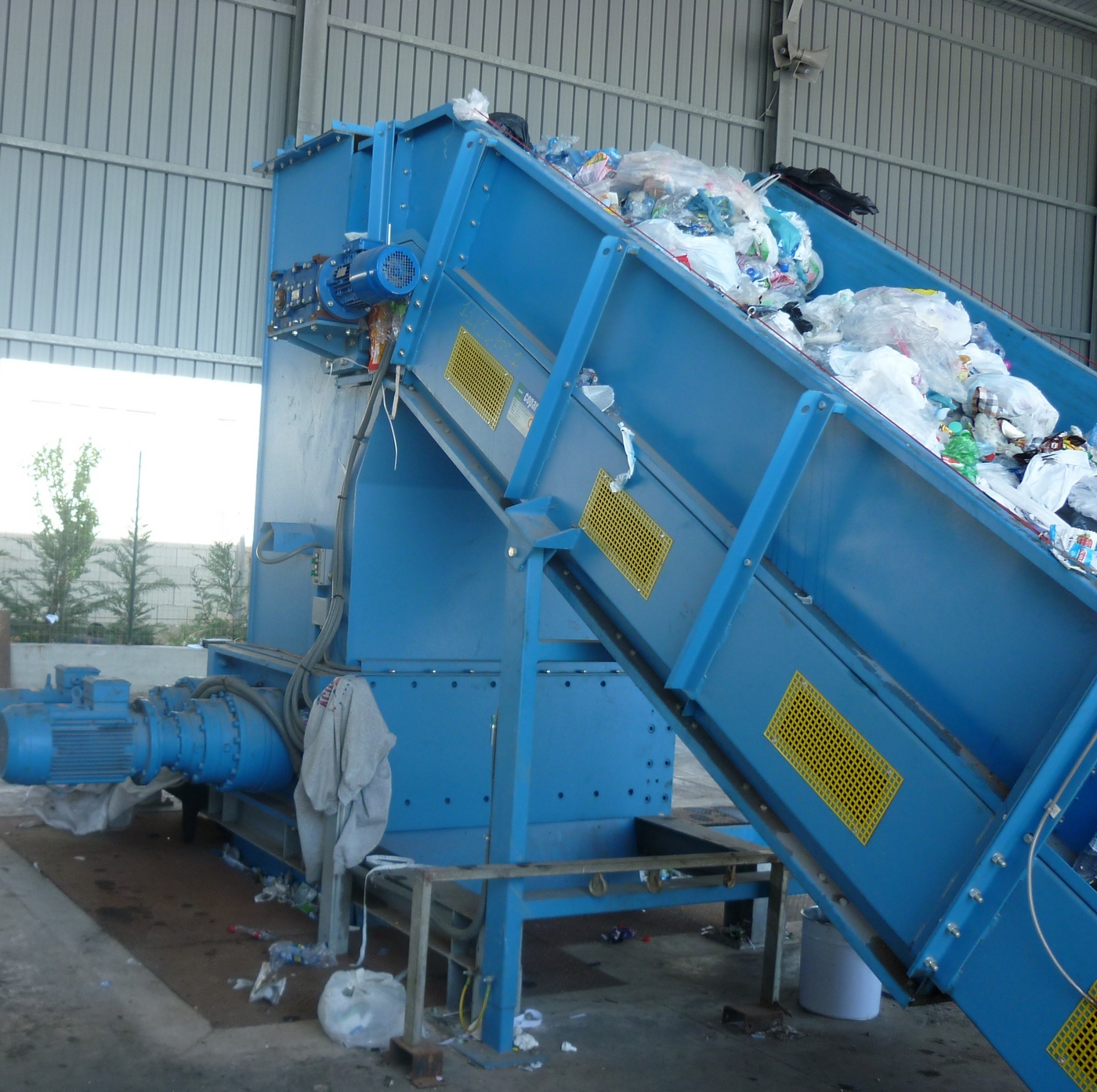

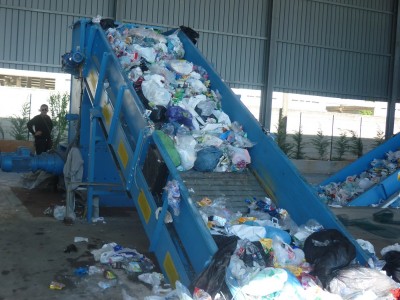

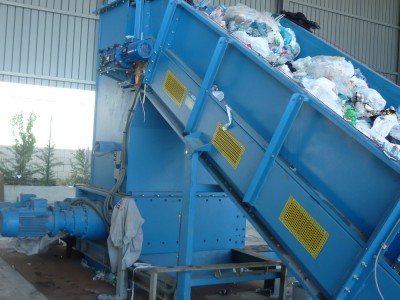

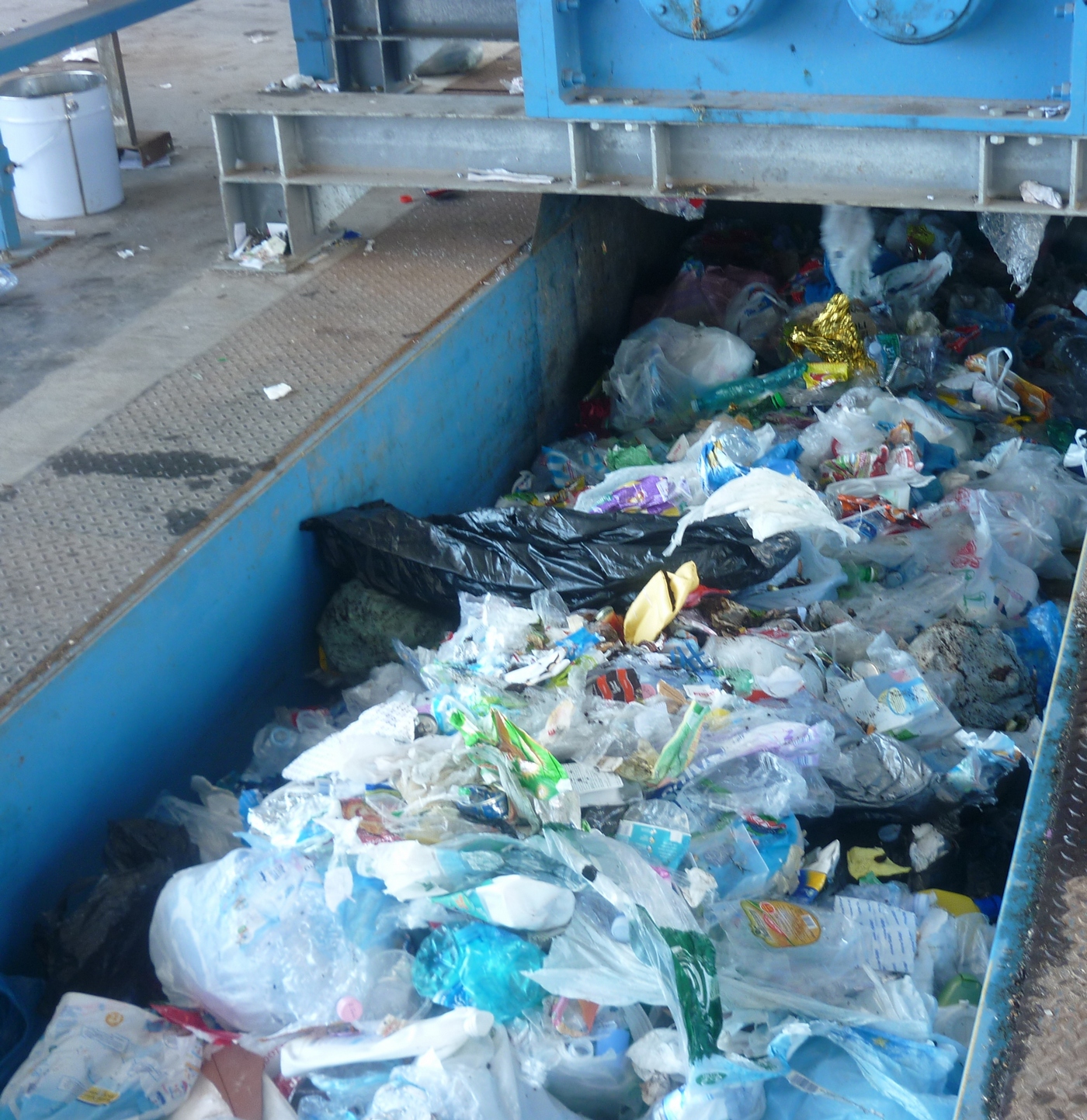

The shredder bag opener Mod. TR 50 has counter-rotating rotors and consists of a grinding chamber in robust welded and sized appropriately, trees port blades, inserts cleaners, large planetary gear units, base support and feeding hopper.

The essential feature of these applications is certainly the robustness which together with the large values of torque applied to the shafts and to a sophisticated electronic control system of the couple, make these machines  reliable and productive.

The blades of these machines are made of alloy steel and wear. Their shape, thickness, and number of knives  is defined in function of the material to be treated. The use of these machines is indicated for: municipal solid waste, waste from waste collection.

Technical features

  • Size grinding chamber 1100 x 1500 mm

  • Cutting segments N° 10

  • Feed hopper 2 mc

  • Thickness sectors 50 mm

  • power 50HP – 37 Kw

  • Rotation speed RPM 18-12

  • Bags RSU 10-12 ton/h

  • Sack’s RD 4-6 ton/h



  • recycling

  • paper Industry
